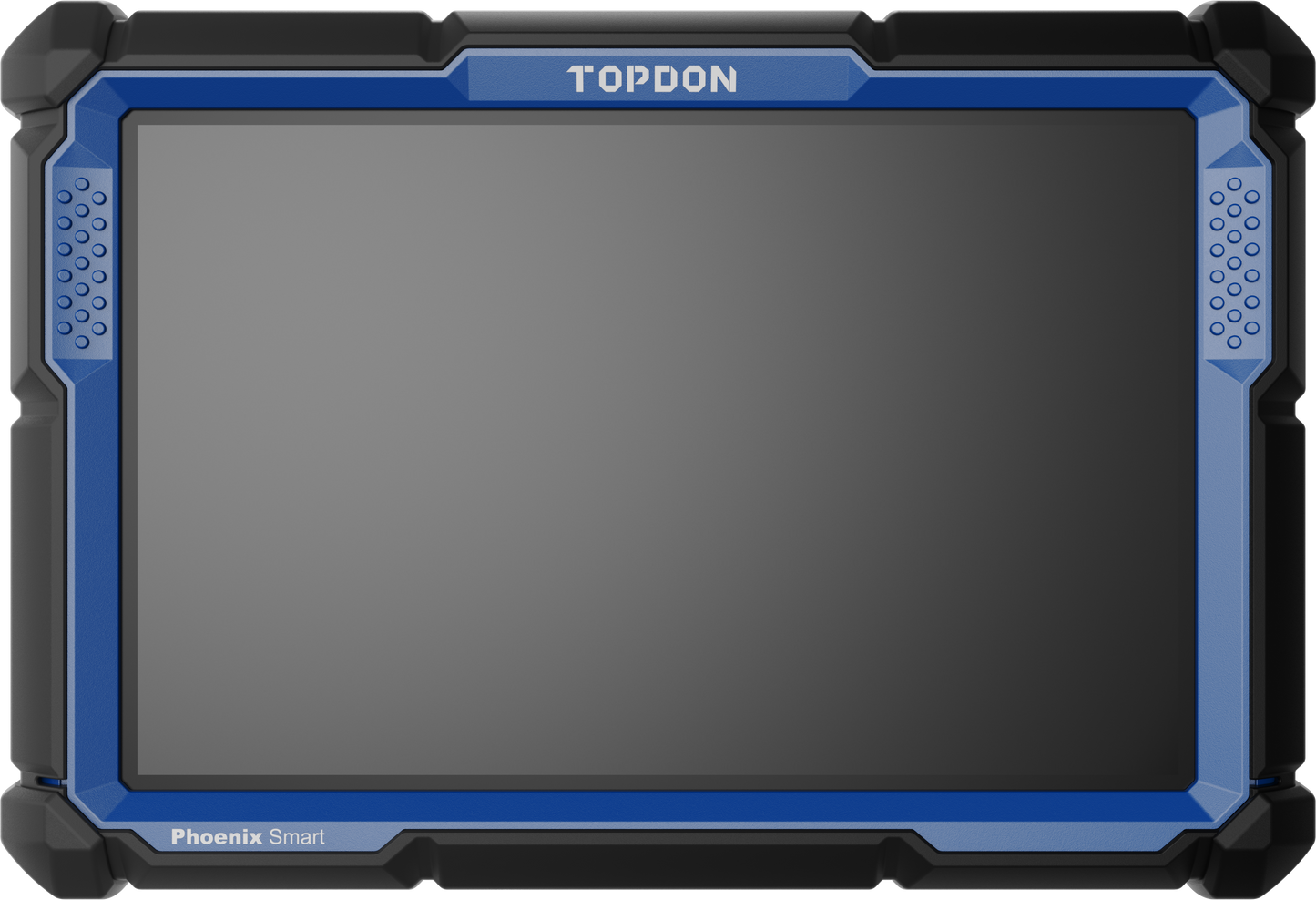

TOPDON Phoenix Smart

Broad Coverage And A Comprehensive Database

The Phoenix Smart supports full system fault diagnosis of more than 200 vehicle brands. This tool offers OE-Level diagnostics for the most common Asian, American, and European models, and many other vehicle models.

Programming Functions And Online Coding

The Phoenix Smart includes Online Coding Functions for Audi, BMW, Porsche, and other vehicle manufacturers.It supports Cloud Based Programming functions for 13+ car brands.

The Phoenix MDCI Pro Has You Covered

TOPDON's Phoenix Smart comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols.This MDCI Pro's unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

Step-By-Step Guided Procedures

Guided procedures and functions streamlines the repair process. Follow the prompts for easy and convenient operation, suitable for VW, Audi, Skoda and SEAT vehicles.

View All Fault Codes On One Screen

The Phoenix Smart Utilizes Topology mapping, displaying the entire vehicle system.Raw data is transformed into clear graphics, so technicians can see the entire status of the car system and get right to the vehicle’s issues.

Access The FCA Gateway

This advanced diagnostic tool supports FCA Gateway Access, allowing users to work on the most modern vehicles and adjust protected functions.

Do More With Special Settings

With the Phoenix Smart, users can unlock special features and settings within vehicles. These advanced capabilities include enabling Video-In-Motion via DVD or USB, disabling the seatbelt light, and more. Applicable to vehicle makes such as Audi, VW, BMW, Porsche, Toyota, and more!

ADAS Compatibility

Offer in-demand services to your customers with the Phoenix Smart. Pair the Phoenix Smart with TOPDON’s Phoenix ADAS Mobile Package to calibrate intricate driving assistance functions.

As ADAS software becomes more common in modern vehicles, the demand for ADAS recalibration will only grow. Meet this growing demand with confidence.

Heavy-Duty Software can be added for an additional fee.

PHOENIX SMART TECHNICAL SPECIFICATIONS

Display: LCD 10.1” touchscreen, 1280*800

CPU: 4-Core Processor, 2.0 GHz, Android 10.0

RAM: 4GROM: 128G

Battery: 12600 mAh / 3.8V

Operating Voltage: 9~18V

Storage Temperature: -20℃~60℃（-4℉~140℉）

Working Temperature: 0℃~50℃（32℉~122℉）

Dimensions: 278*191*48 mm（10.94*7.52*1.89 inch）

Package Size: 468*320*143 mm(18.43*12.60*5.63 inch)

Multilingual Support: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese(Traditional), Korean, Finnish

PHOENIX MDCI PRO TECHNICAL SPECIFICATIONS

CPU: Cortex-A7 + Cortex-M7, Dual Processor

Operating System: Linux

RAM: 256M

ROM: 8G

Display: TFT, 3.97”, 320x480Pixels

Wi-Fi: 2.4GHz/5GHz, Dual Band

Working Temperature: 0℃~50℃（32℉~122℉）

Operating Voltage: DC 9~36 V

Dimensions: 196 x 135 x 42.8 mm（7.72 x 5.31 x 1.69'')

New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210

1* Phoenix Smart

1* Phoenix MDCI Pro(VCI Dongle)

1* OBDI Adapter BOX Transfer Line

1* OBDII Extension Cable

1* Cigarette Lighter Cable

1* Type-C to USB Cable

1* Battery Clamps/Cable Set

1* User Manual

1* Password Envelope

10* Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)

4* Fuse (φ5*20mm)

2* Fuse (φ6*30mm)

1* Type A to B Cable

Warranty Continues with Customer's Subscription

2 Years of Free Software Upgrades
