ThinkCar

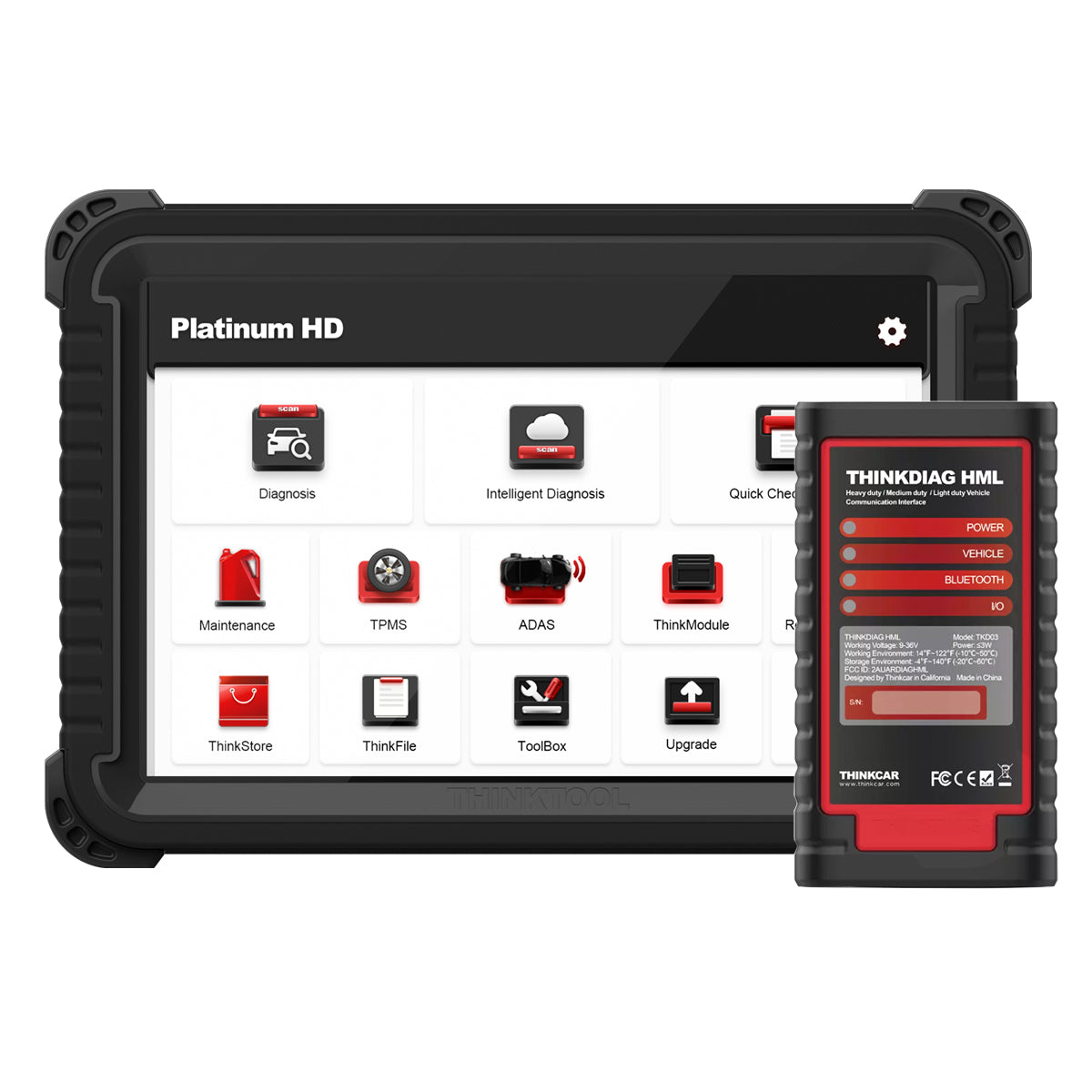

PLATINUM HD

PLATINUM HD

Regular price $2,699.00 USD
Regular price $2,999.00 USD Sale price $2,699.00 USD
Sale Sold out

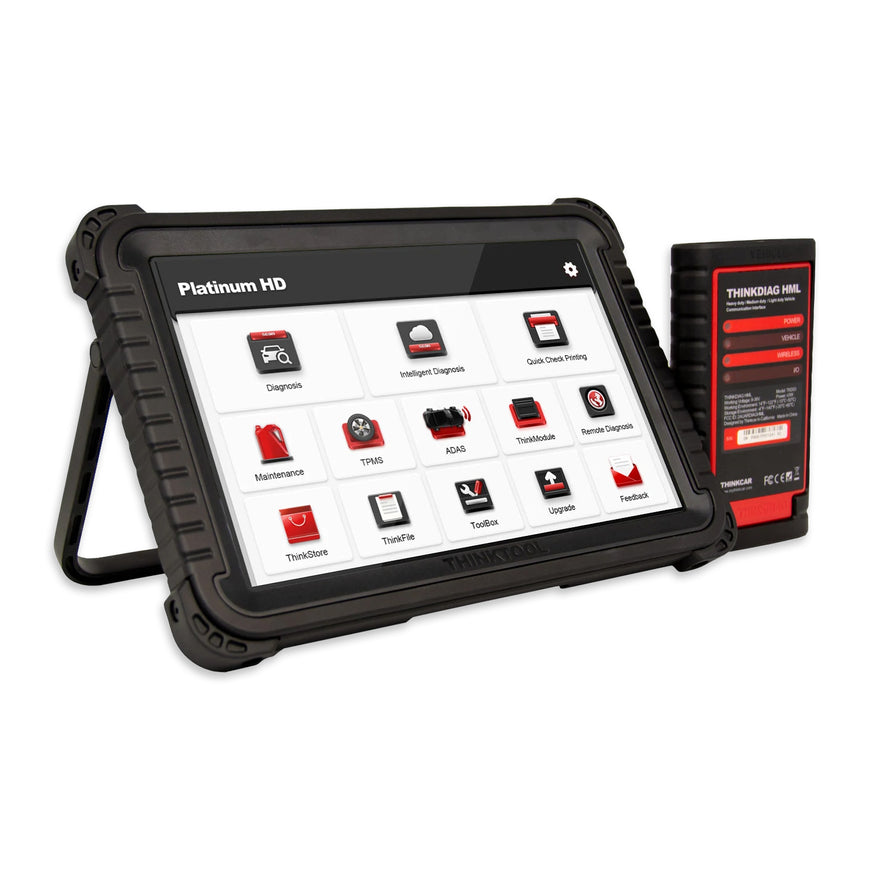

The HD scanner is capable of both On-Highway and Off-Highway with Bi-Directional capabilities. Provides complete functions for technicians, such as full vehicle scan, read and clear fault codes, live data stream, actuation tests, and special functions.



Features

  • OEM Level Maintenance Functions

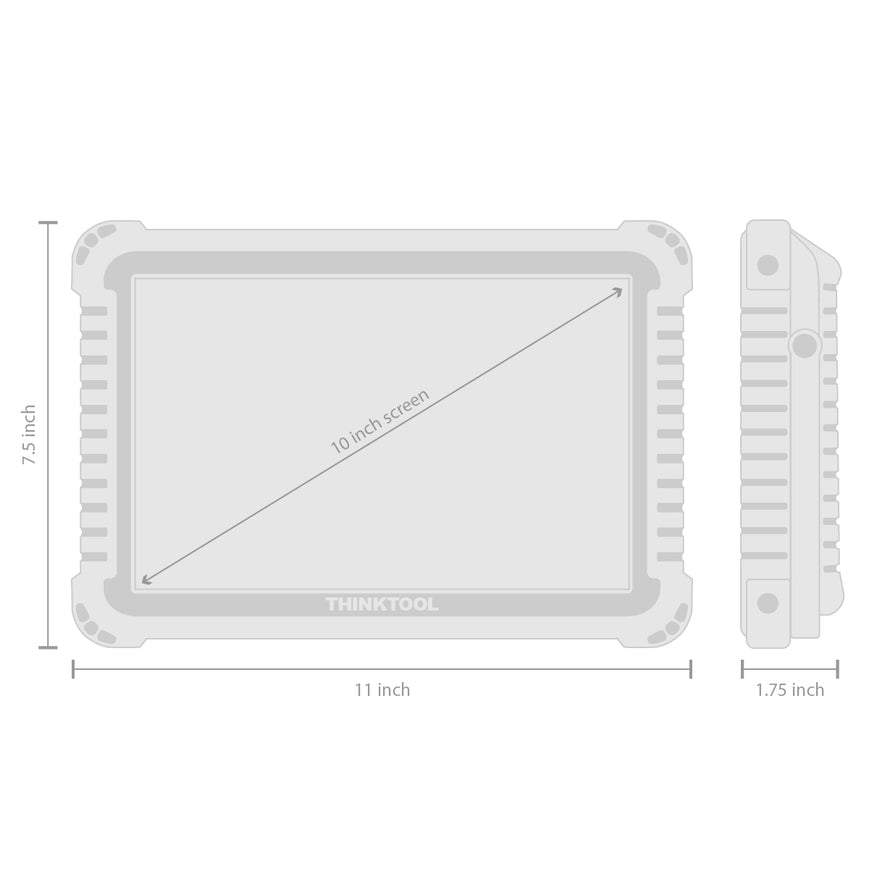

  • 10' inch Touchscreen Display
  • Bluetooth VCI
  • Bi-Directional Functions
  • Read & Erase DTC Codes
  • Live Data
  • ADAS Calibration (Optional)
  • TPMS Resets (Optional)
  • Remote Assistance(TeamViewer)
  • AUTO VIN Scan
  • Supports Port Module Accessories
  • Programing/Coding
  • 8 MP Camera
  • Android 10 OS
  • 4GB RAM/128 GB Storage
  • Wi-Fi Capabilities

Software Coverage
Software

  • 2 Year Passenger Vehicles
  • 2 Year Heavy Duty Vehicles

Protocols

  • OBD2 16 PIN
  • CAN FD
  • D-PDU
  • DoIP Protocol

Popular Covered HD Vehicles Brands

  • Freightliner
  • CAT
  • International
  • Cummins
  • MaxxForce
  • Kenworth
  • Peterbilt
  • Volvo Trucks
  • Mack Trucks
  • Isuzu Trucks
  • Hino Trucks

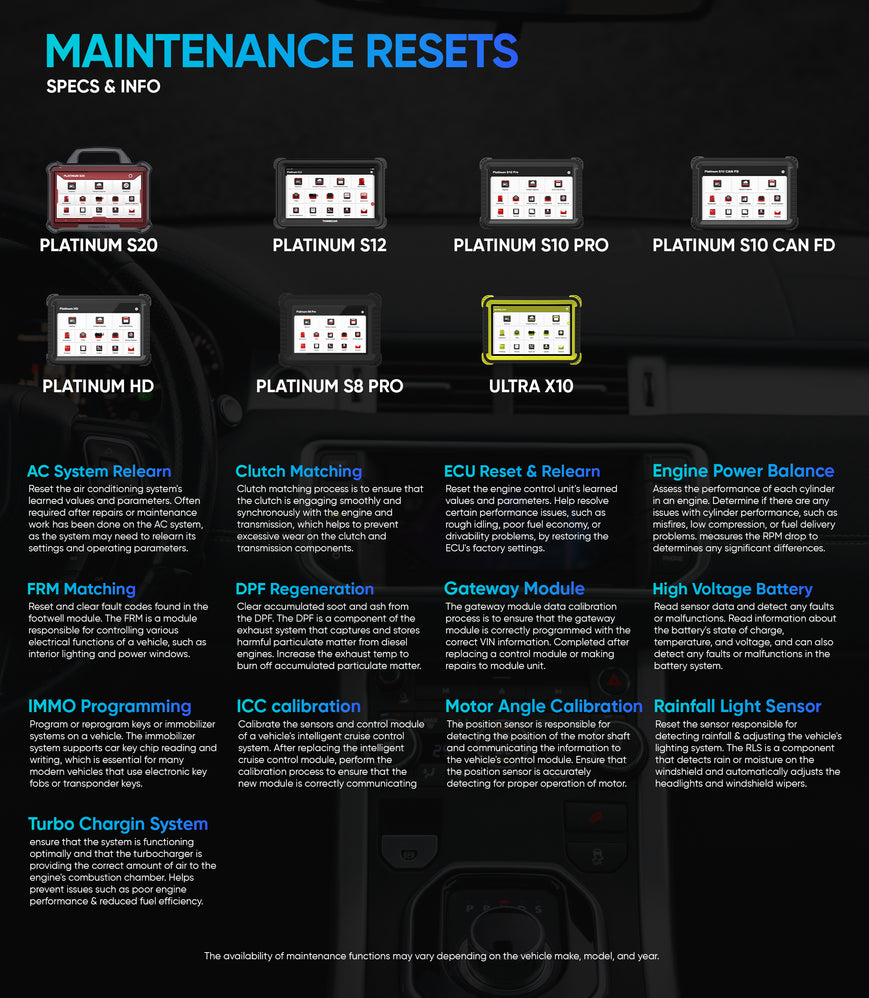

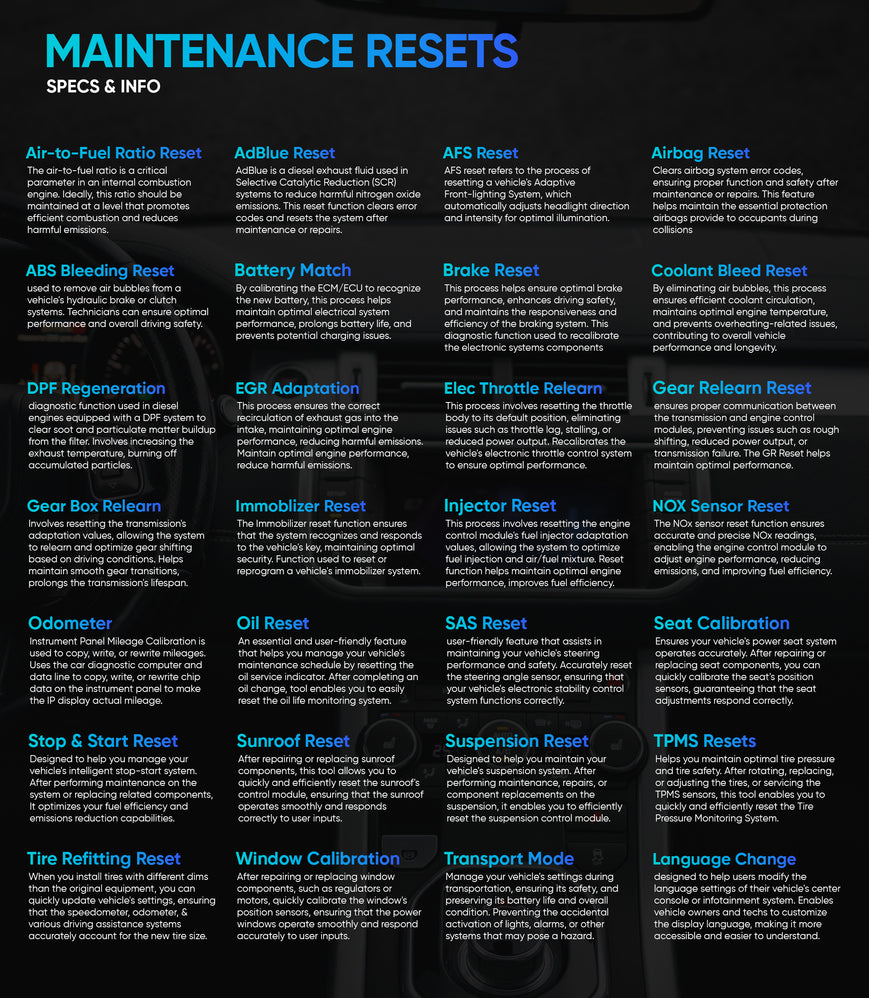

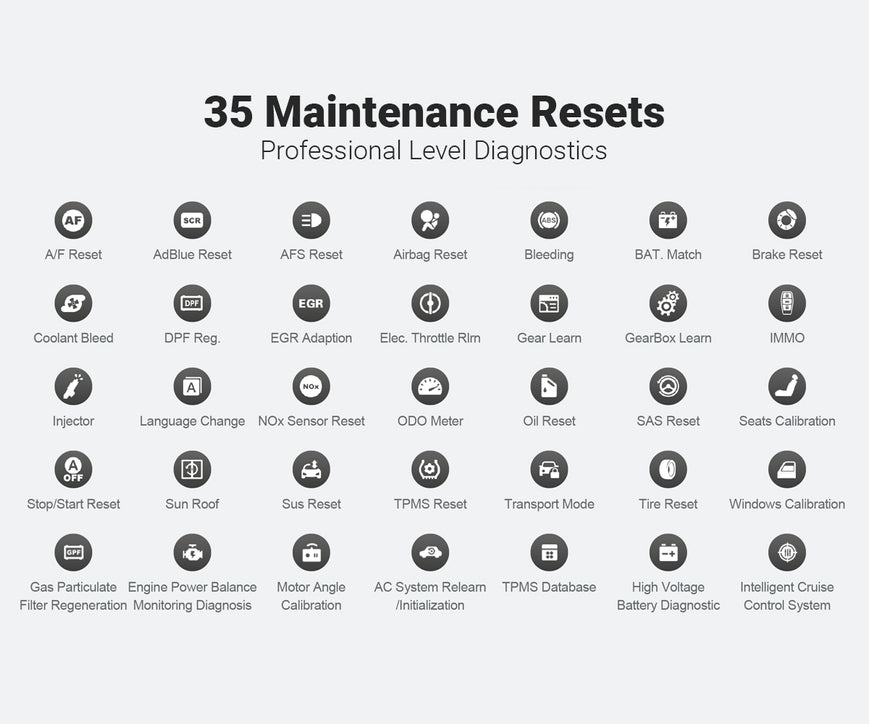

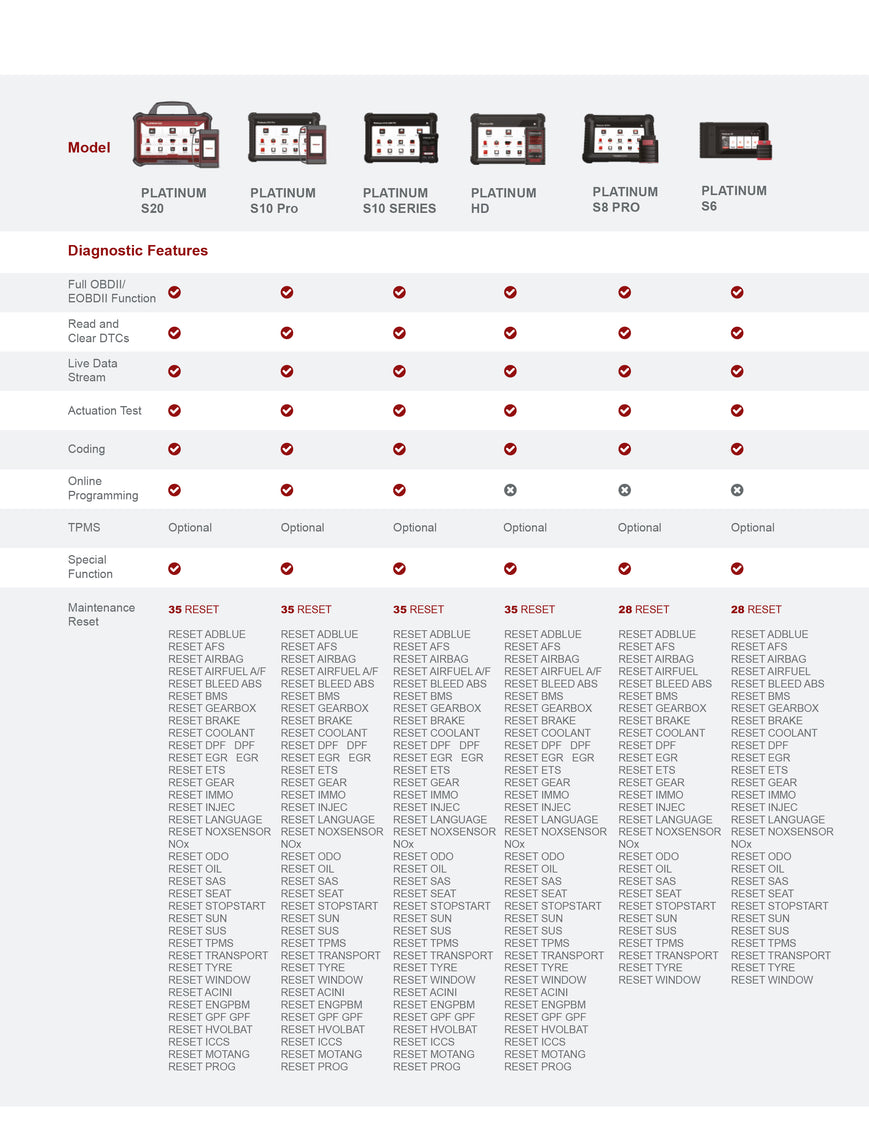

Maintenance Resets
Supported Maintenance Functions

  • Air-to-Fuel Ratio Reset
  • AdBlue Reset
  • AFS Reset
  • Airbag Reset
  • ABS Bleeding Reset
  • Battery Match
  • Brake Reset
  • Coolant Bleed Reset
  • DPF Regeneration
  • EGR Adaptation
  • Elec Throttle Relearn
  • Gear relearn Reset
  • Gear Box Relearn
  • immobilizer Reset
  • Injector Reset
  • NOX Sensor Reset
  • Odometer
  • Oil Reset
  • SAS Reset
  • Seat Calibration
  • Stop & Start Reset
  • Sunroof Reset
  • Suspension Reset
  • TPMS Resets
  • Tire Refitting Reset
  • Window Calibration
  • Transport Mode
  • Language Change
  • AC System Relearn
  • Clutch Matching
  • ECU Reset & Relearn
  • Engine Power Balance
  • FRM Matching
  • DPF Regeneration
  • Gateway Module
  • High Voltage Battery
  • IMMO Programming
  • ICC Calibration
  • Motor Angle Calibration
  • Rainfall Light Sensor
  • Turbo Charging System

Disclaimer: It's important to note that the diagnostic functions available with vehicle diagnostic scanners may vary depending on the specific vehicle manufacturer, model, and year. While these scanners offer comprehensive diagnostic capabilities, certain vehicle makes or models may have unique systems or proprietary protocols that may limit or expand the available functions.

Included Standard Resets

  • Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.
  • Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.
  • Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.
  • Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.
  • Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.
  • Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.
  • Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.
  • Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.
  • Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.
  • Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.
