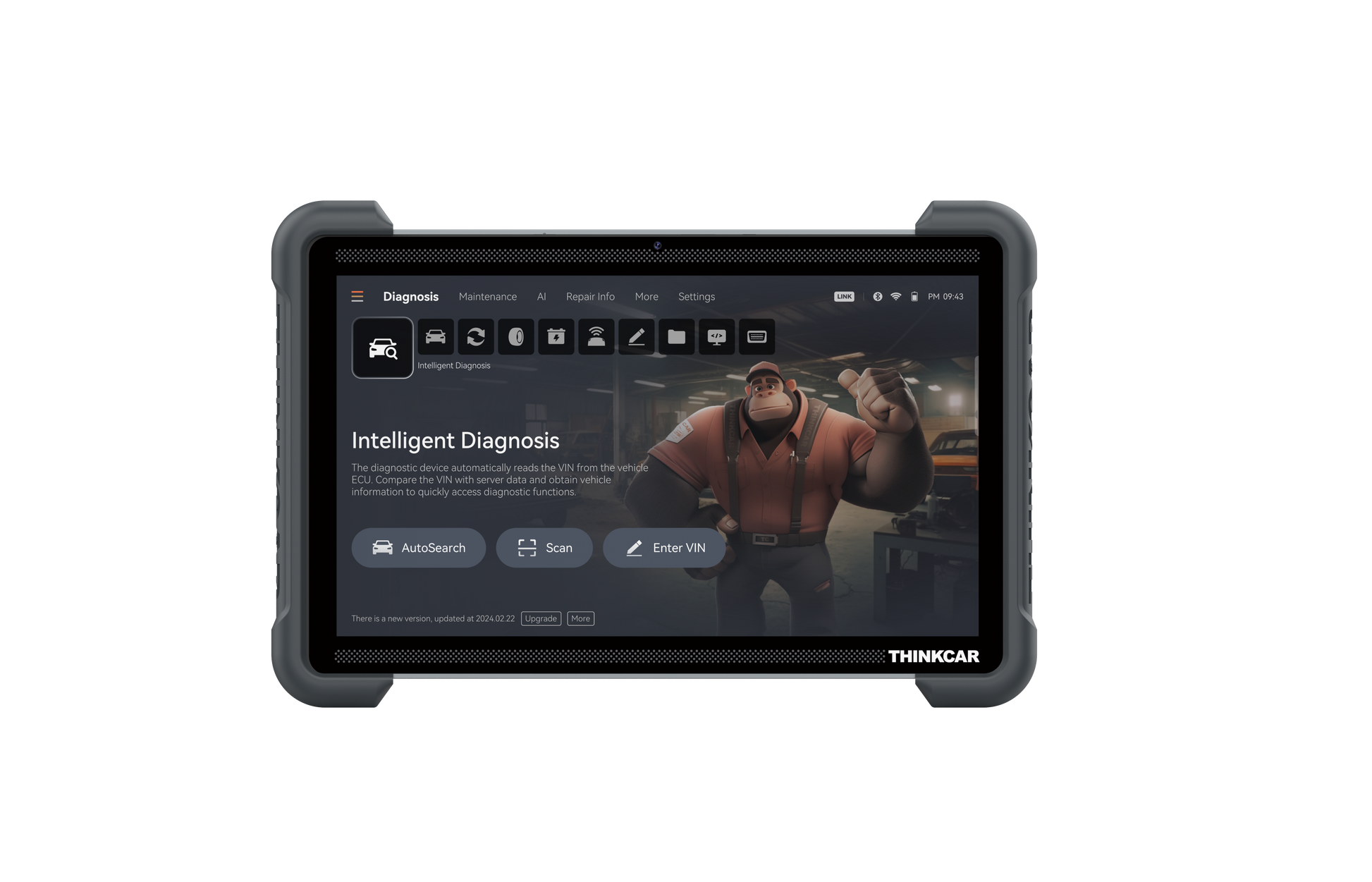

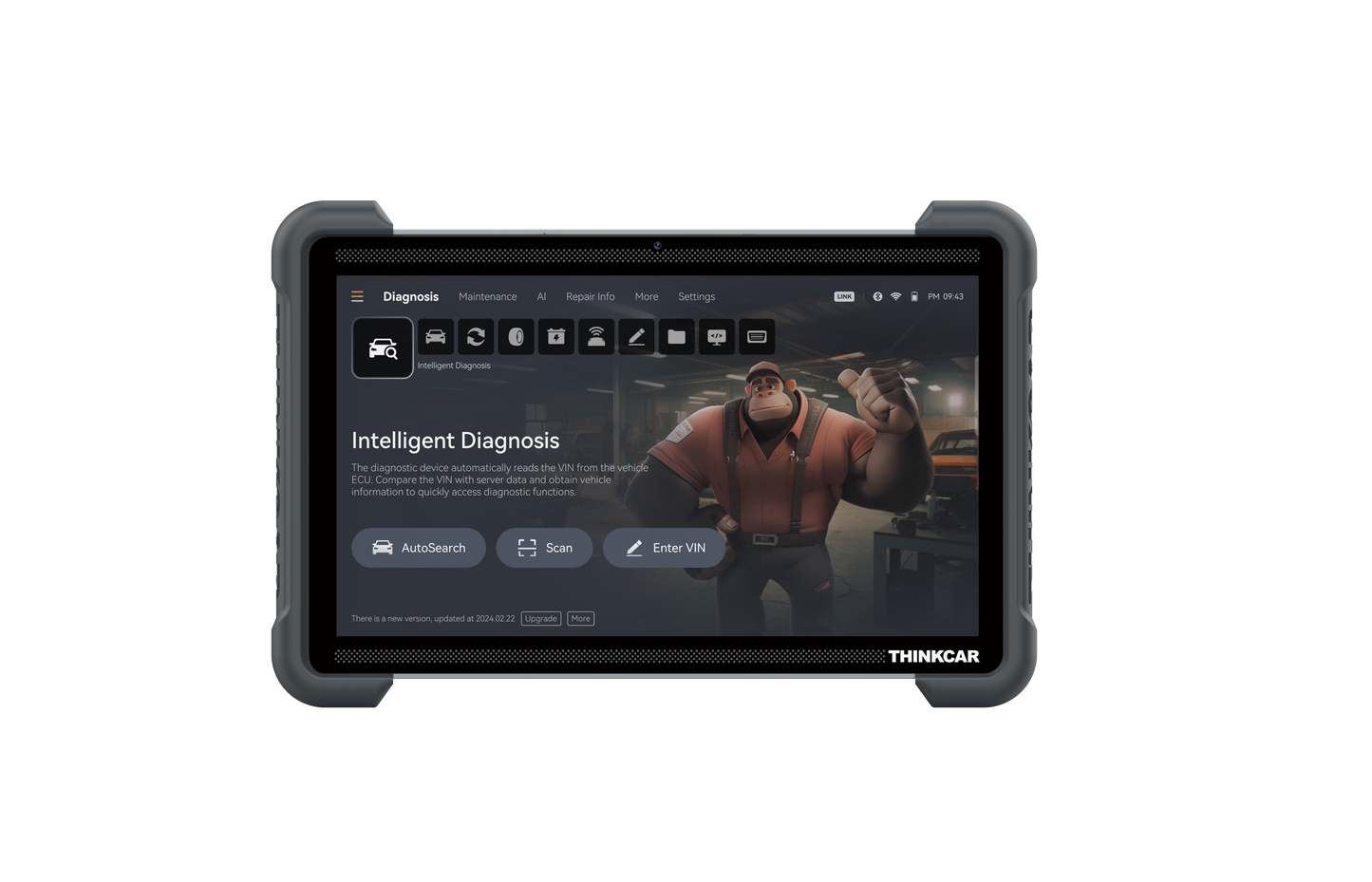

ThinkCar - ThinkTool Platinum 394 / Expert 394 - Professional Diagnostic Scan Tool Automotive Service

The THINKTOOL Platinum 394 / Expert 394 is the newest 12-inch AI diagnostic device developed by THINKCAR in late 2024, which features with uniquely designed navigation and optimized UI interface with the powerful TCOS Android operating system. The ThinkTool Platinum 394 comes with the latest ThinkLink Pro VCI to support the below listed key features and hardware specifications. Most importantly the split screen to view and compare dual levels of test data, as well as module details.

The ThinkTool Platinum 394 is capable of diagnosing passenger and commercial vehicle systems, as well as electric and hybrid models, medium duty truck and heavy duty truck vehicle systems, which makes this tool platform software an ideal choice for mechanics and shop owners looking to offer their customers with a greater variety of service and repair options.

• OE-Level Diagnostics
  Access includes full system diagnostics, special functions, actuation tests, bi-directional controls, advanced component coding, online and remote programming
• Newly Released AI Diagnostics
  Provides technicians optimized user experience. ThinkCar software can easily follow commands and provide new levels of diagnostic information.

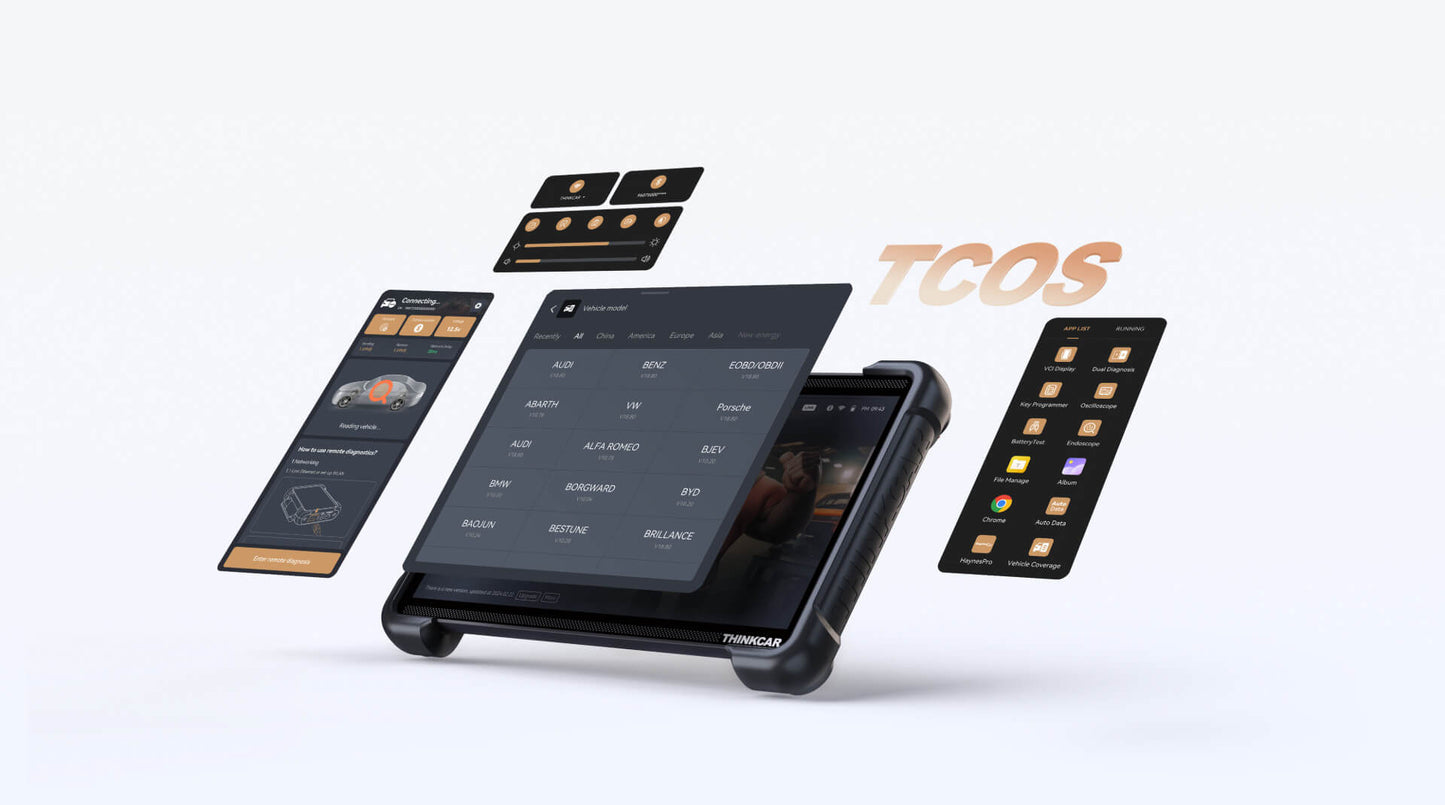

• TCOS Android Operating System
  The advanced TCOS system provides mechanics a brand new UI interface to optimize the user experience and simplify diagnostic operation.

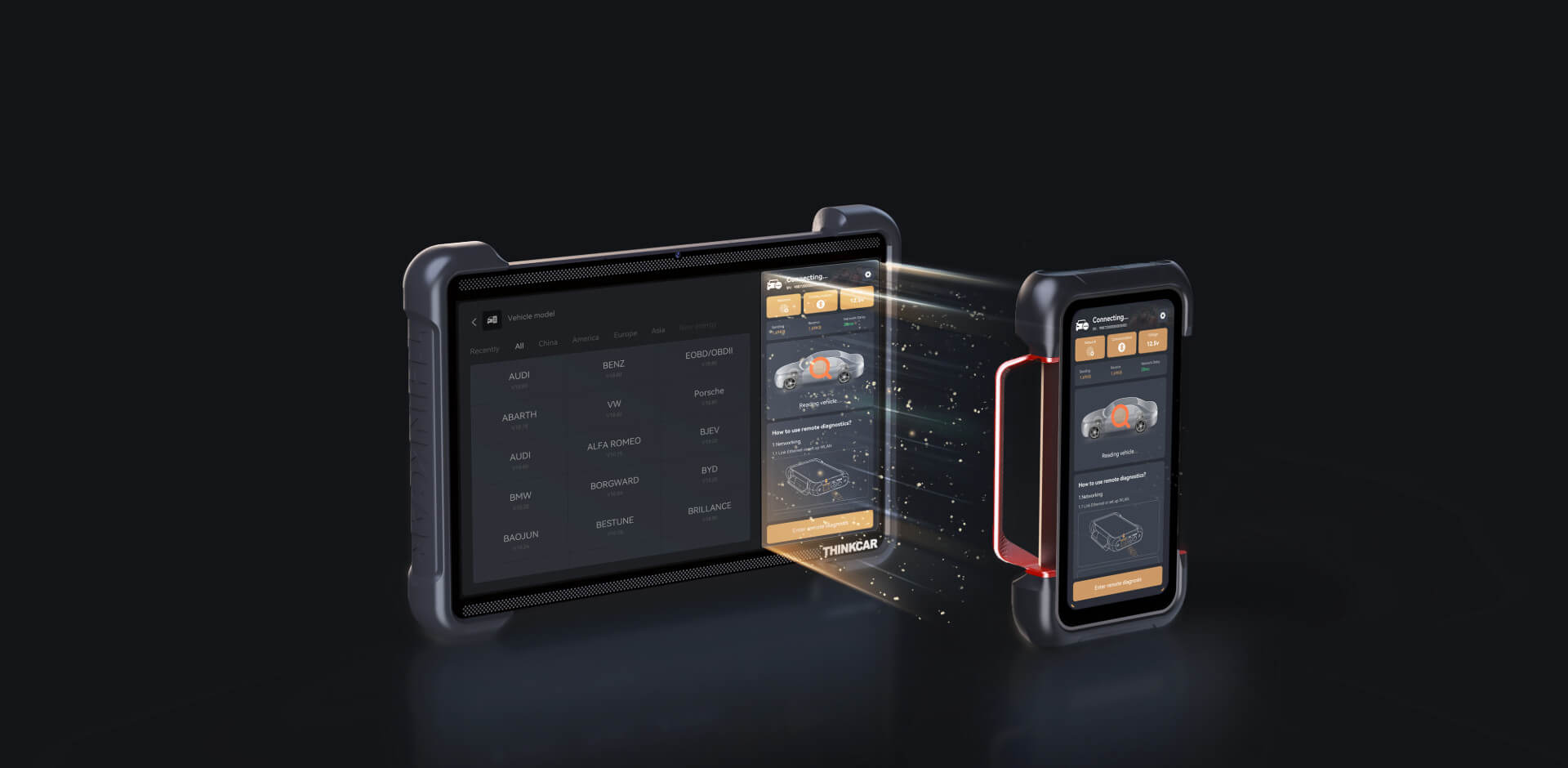

• VCI Display
  The VCI data can be synchronized and confirm real-time device data.
• 2-Years FREE Software Updates
  Comes with 2-Years of free vehicle coverage updates for all the makes and models available, including the latest Tesla software coverage. The HD software need to pay with T-code though local authorized distributors.
• 41 maintenance functions
• Protocol Support
  Built-in THINKLINK PRO VCI supports modern diagnostic protocols like CAN 2.0, CAN FD, DoIP, and J2534

• Support Video Remote Diagnostics
• Superior Hardware
  12-inch HD IPS touch screen, 256G storage, 13MP Rear Camera, 5MP Front camera.

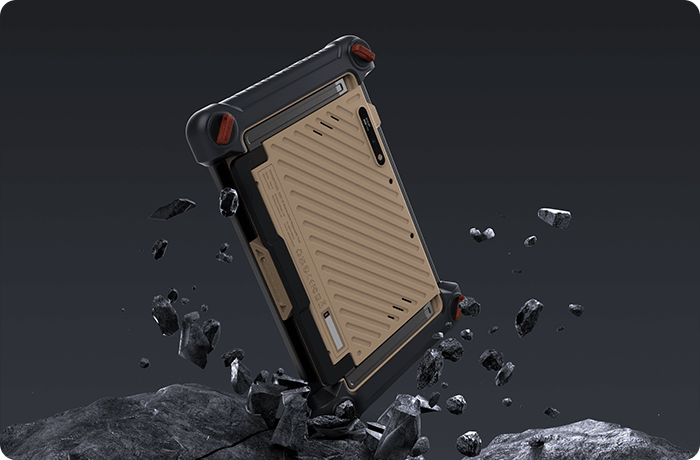

• Rugged Design
  Durable titanium alloy housing designed to withstand shop environments and drops.
• Additional Services (optional)
  Which support ADAS calibration services, comprehensive TPMS services, and key programming services.
• Expandable functions (optional)
  Supports battery testing, endoscope, printer, oscilloscope, and other expandable functions.
• Specifications
  • Android Operating System: TCOS
  • ROM / RAM:  256G/8G
  • Battery:  12600mAH/ 3.8V
  • VCI:  THINKLINK PRO
  • Screen Size:  12-inch
  • Passenger Software: 2-Yr FREE

  • EV Software: 2-Yr FREE (Includes Tesla)
