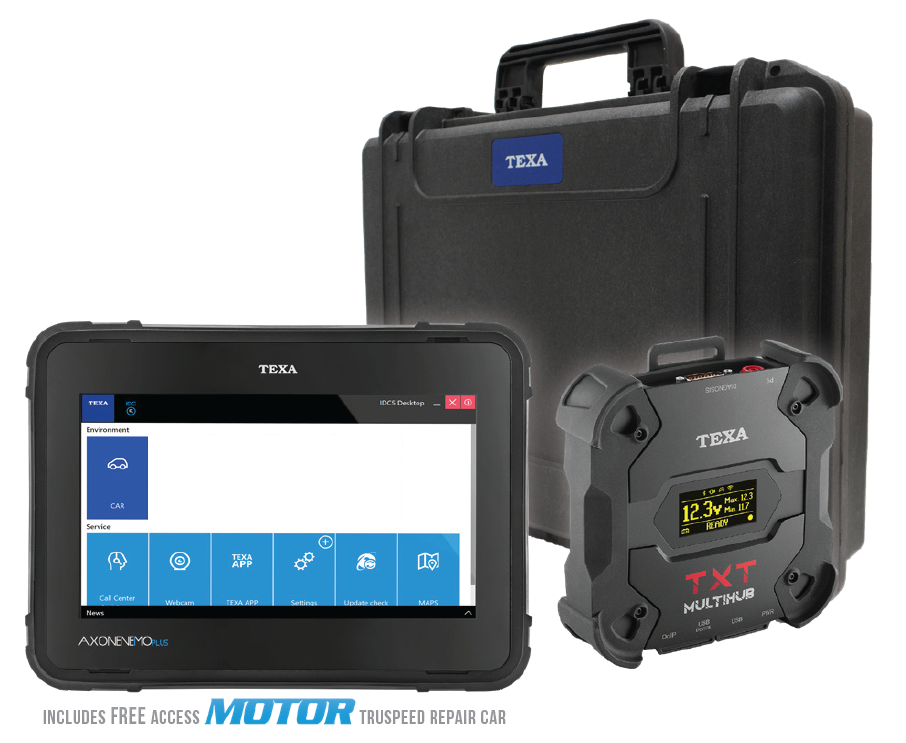

Texa AXONE NEMO PLUS CAR WITH MULTIHUB - PLCMH

Multibrand diagnostics by TEXA

Today the diagnostics tool is an essential piece of equipment for every vehicle workshop.

Whatever the fault, it is likely that during each repair process the ECUs will need to be accessed to clear the fault codes or configure the replacement components, operations that are only possible using a diagnostic tool.

Now even scheduled service and maintenance in many cases requires the use of diagnostic equipment, to reset the service lights and check or activate the various systems.

The NAVIGATOR TXTs is the latest multibrand diagnostic interface by TEXA; NAVIGATOR TXTs is a powerful multibrand diagnostics and autodiagnostics tool that connects directly to the vehicle’s diagnostic socket, and communicates via Bluetooth with the AXONE Nemo, AXONE 4 Mini and MULTI PEGASO display units, or alternatively with a Windows PC.

5 Environmentsin the one tool

The NAVIGATOR TXTs is the most complete and versatile version in the range, and can be used on any type of vehicle.

Wireless connectivity means users can carry out diagnostics testing while being free to move around the vehicle and workshop.

NAVIGATOR TXTs can perform all common autodiagnostics tests, including: read and clear errors, display engineering parameters and activation status, set and configure oil change, service and airbag indicator light reset, ECU configuration, keys and remote controls.

PASS THRU

NAVIGATOR TXTs is compatible with the PASS-THRU protocol*, which allows any workshop to connect to each manufacturer’s central server and download software packages or official technical information.

The PASS-THRU function can be used whenever needing to update the software on one or more electronic control units, in the event of malfunctions.

* Go to www.texa.com/passthru to verify compatibility and the functions made available by individual vehicle makers.

PROCESSOR
CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes,

MEMORY
SRAM memory: 8 MBits organized 512 KBytes x 16 bits, NAND Flash memory 1 GBit on bus a 8 bit

VEHICLE BATTERY 12 VDC and 24 VDC systems’ management

EXTERNAL POWER SUPPLY
8 ÷ 32 Volt

USB COMMUNICATION
Virtual RS232 via USB 2.0 Device

WIRELESS CONNECTION
Bluetooth class1 (30 m)

ELECTRONIC SWITCH
2-way, 13 independent positions

DIAGNOSTIC CONNECTOR
DSUB-26HD standard ISO 22900-1

CONTROL UNIT REPROGRAMMING CONNECTOR
PV as required by the SAE J2534 protocol

ENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Stocking temperature: – 20 ÷ 60 °C
Operating moisture: 10 ÷ 80 % without condensation

DIMENSIONS
160x170x55 mm

WEIGHT
1 kg

SUPPORTED PROTOCOLS
Blink codes K, L (with current protection 100 mA), ISO9141-2, ISO14230; CAN ISO11898-2, ISO11898-3 SAE J1850 PWM SAE J1850 VPW SAE J2534-1

REGULATIONS
Directive: 1999/5/EC
Safety: EN 60950
Electromagnetic compatibility: EN55022, EN 55024, EN 301 489-1
Radio

1 Year Warranty

1 Year of Free Software Upgrades
