Launch Tech

Launch X-613 Mobile Wheel Aligner

Launch X-613 Mobile Wheel Aligner

Regular price $15,613.00 USD
Regular price Sale price $15,613.00 USD
Sale Sold out
Shipping calculated at checkout.

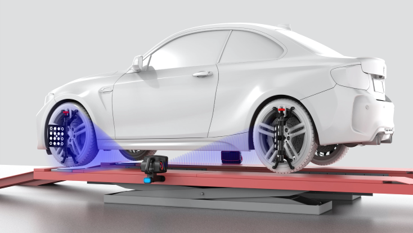

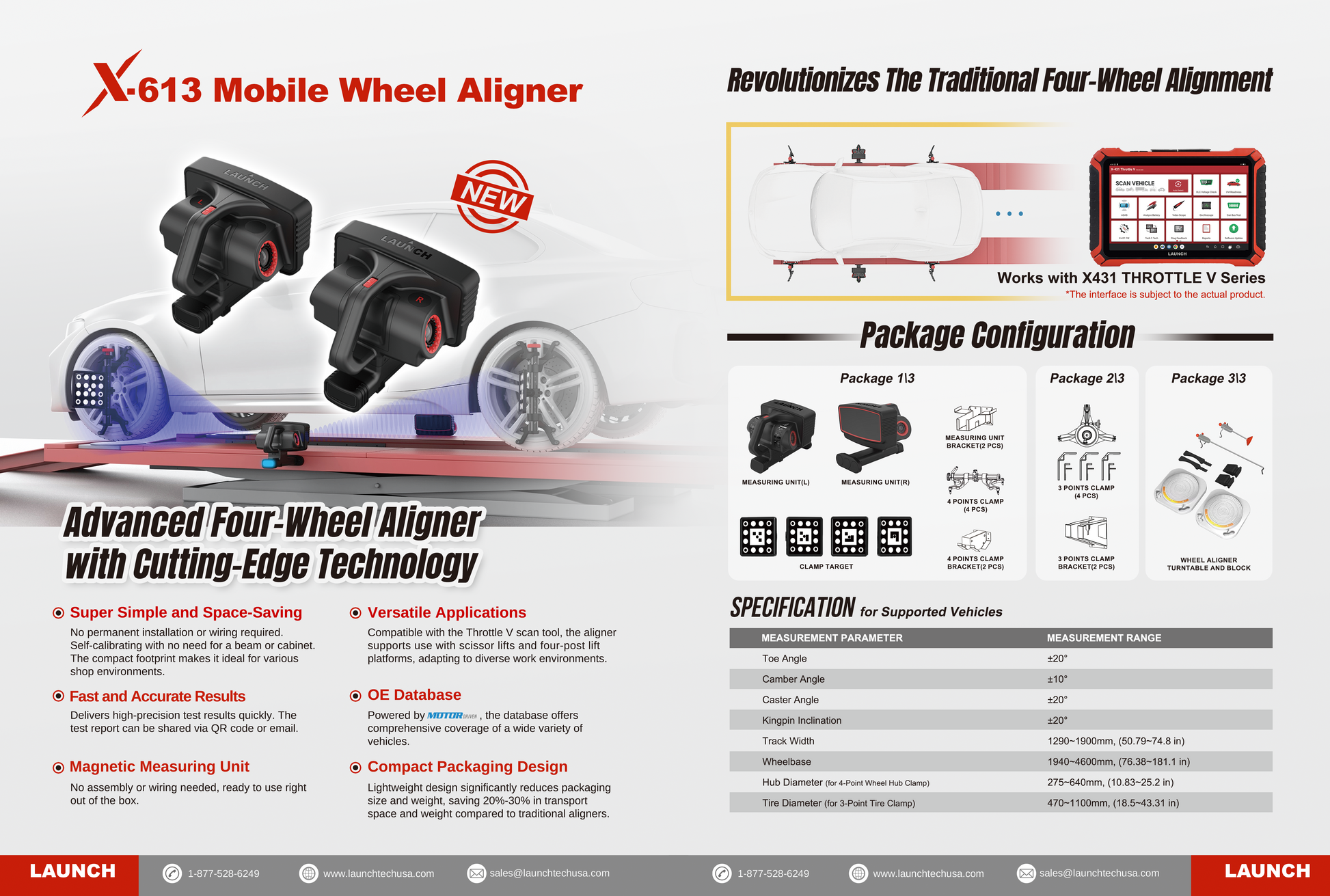

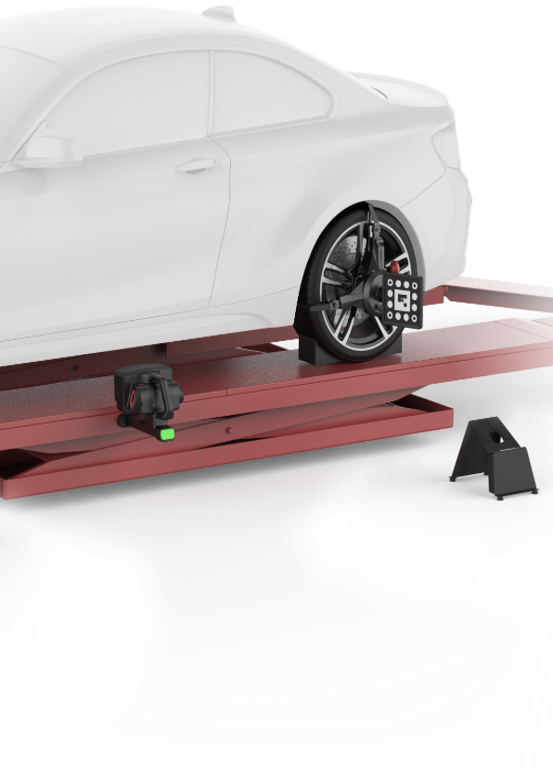

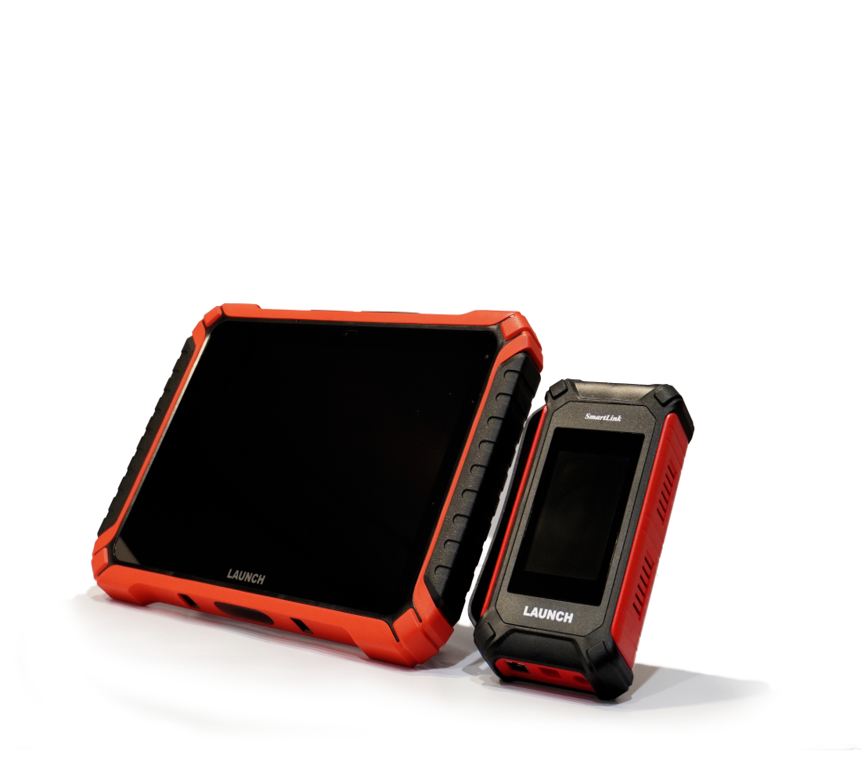

The Launch X-613 Mobile Wheel Aligner is a highly functional and portable solution for performing vehicle wheel. With a streamlined design and wireless communication, it can be easily deployed in various workshop settings without the need for installation, wiring, or calibration. Enjoy precise four-wheel alignment detection with the X-613's magnetic measurement units and four-wheel clamp targets. Includes Throttle V Tablet with full Automotive software.

  • Plug-and-Play Operation: Does not require installation, wiring, or calibration; ready to use upon delivery.
  • Space Efficiency: Removes the need for beams and cabinets, reducing the space required for operation.
  • Measurement Speed: Produces high-precision four-wheel alignment results within 30 seconds.

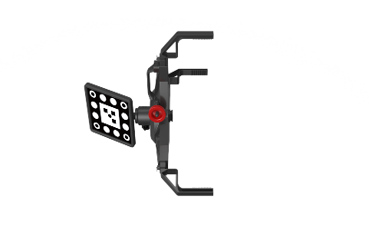

  • Wheel Clamp Design: Patented magnesium alloy single axle clamp, lightweight and durable, with a built-in scale for pre-adjustment based on tire diameter.

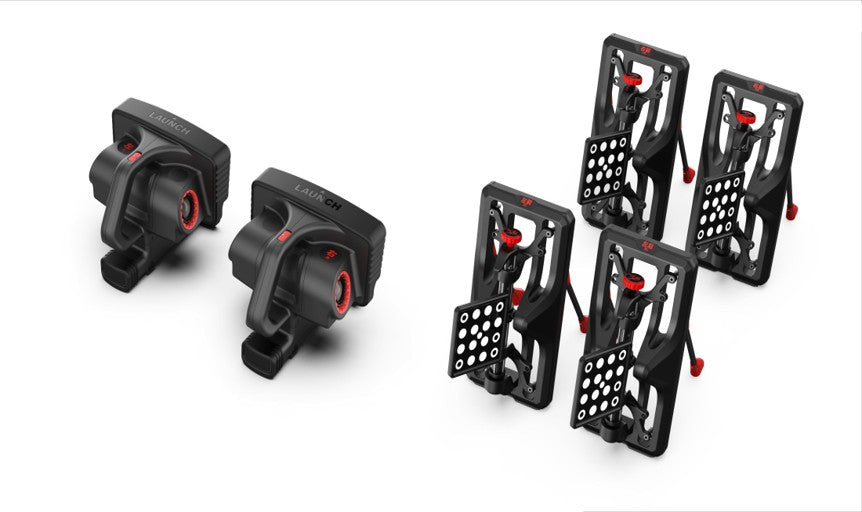

  • Magnetic Measurement Units: Operates without assembly or wiring; designed for immediate use.
  • Wireless Communication: Transmits measurement data to a scanner for display and adjustment.
  • Compact Packaging: Reduces transport weight and volume by 70-80% compared to traditional 3D wheel alignment systems.

Measurement Parameter, Measurement Range
Toe Angle, ±20°
Camber Angle, ±10°
Caster Angle, ±20°
Kingpin Inclination, ±20°
Track Width, 1290~1900mm, (50.79~74.8 in)
Wheelbase, 1940~4600mm, (76.38~181.1 in)
Hub Diameter (for 4-Point Wheel Hub Clamp), 275~640mm, (10.83~25.2 in)
Tire Diameter (for 3-Point Tire Clamp), 470~1100mm, (18.5~43.31 in)
