All the details
Features
Expanded Compatibility With SAE J1772 (TYPE1) Connector
- Using a standard J1772 connector, the PulseQ allows for wide compatibility with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles.
- Coverage includes Tesla (adapter needed), Ford, GM, Volkswagen, Nissan, Audi and more; perfect for users that own more than one electric vehicle.

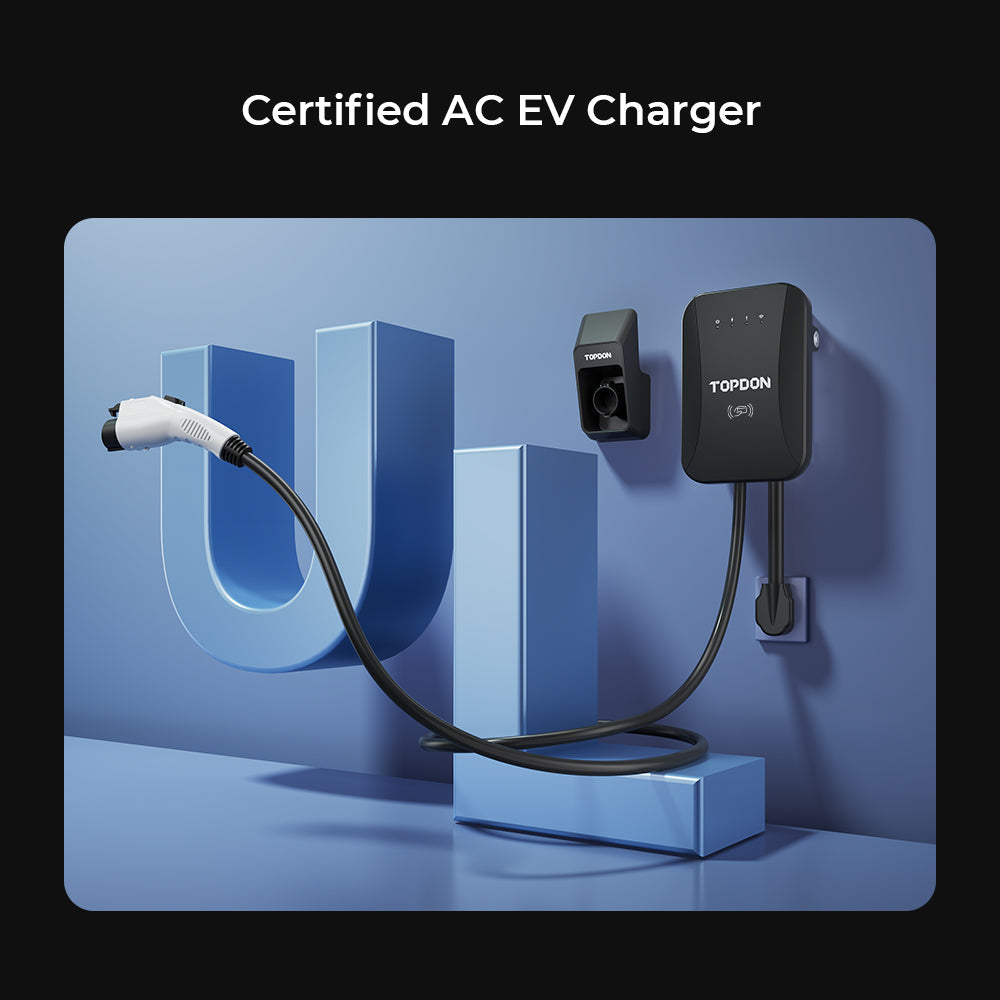

Level 2 Charger with UL Certification
- The U.S spec PulseQ is a UL listed EV charger; meeting national safety standards with respect to design, performance, and installation.
- Equipped with a NEMA 14-50 plug, this Level 2 240V home charger can work more efficiently than the level 1 charger as it will provide faster charging.
Work Easier with Intuitive App
- Using the PulseQ's compatible smartphone app; schedule charging times, check charging milage and cost, get fully charged notifications and adjust the charging current.
- With administrator permissions (the first registered user) the PulseQ can be operated by more than one person simultaneously.
Plug-and-Play & App Control
- The App controlled charging mode allows users to set charging times, adjust charging current, as well as track charging status; all on a smartphone. With Plug-and-Play mode, charging begins as you slot the charger into the vehicle; stop charging by pressing the button on the side of PulseQ to pull out the charger.
- The smart design will automatically switch into Plug-and-Play mode and continue to charge your vehicles if the App loses connection with the charger.
Compact Design & Easy Installation
- Compact design and easy installation make the PulseQ a great option for those who want to install an electric vehicle charging station at home. Easily mount the charger on a wall or pole. The PulseQ can even be mounted outside.
- If an NEMA14-50R outlet is installed and Wi-Fi connected, the charging station can be easily installed in 15 minutes.
Built to Last
- The PulseQ is made of flame-retardant materials and is packaged in a dust-proof and water-resistant case that’s built to NEMA TYPE 4 standards; suitable both for indoor and outdoor application, and backed by the TOPDON 3-year warranty. The connector operating life is up to 10000 cycles.

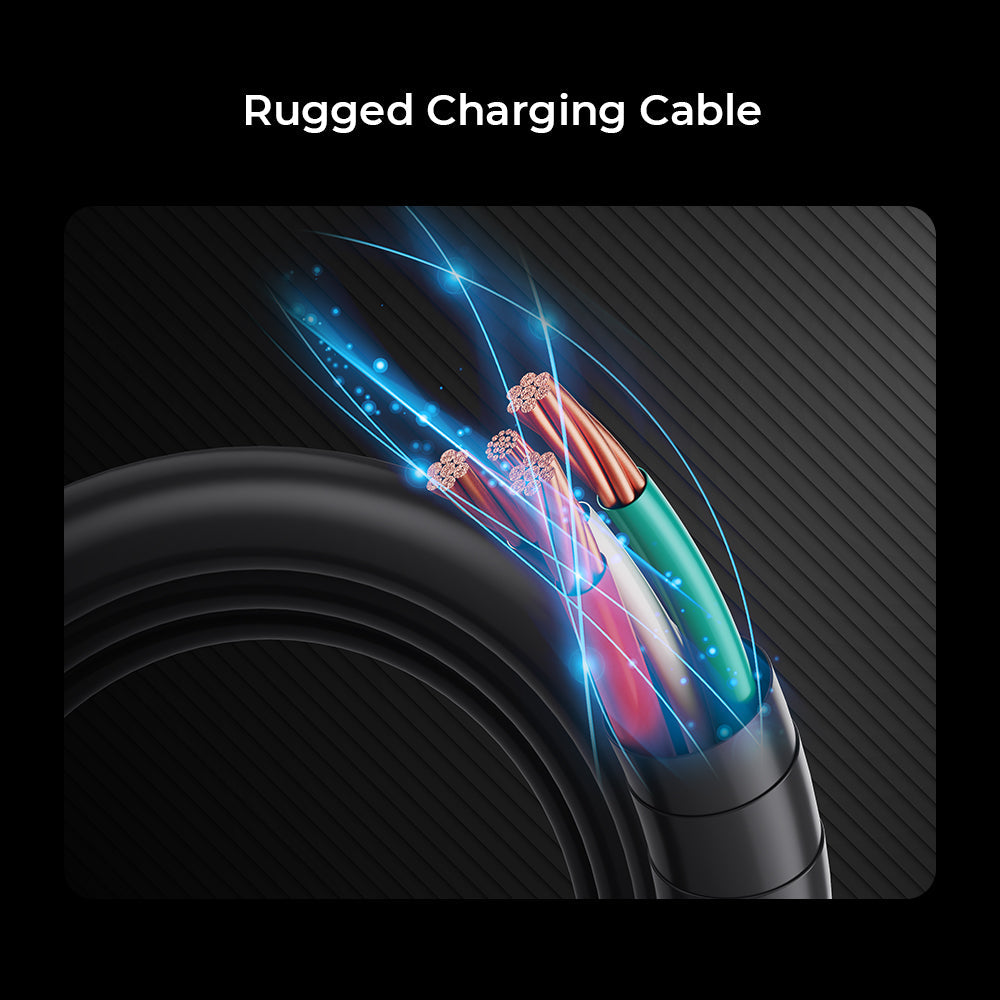

- Equipped with a 16.4ft rugged charging cable made of PVC and copper, which can accommodate up to 40A. The charger can be saved in the socket when not in use; coil the charging cable and hang it over the socket for storage.
Safety Above Everything
- The PulseQ is equipped with multiple safety features to ensure safety under any circumstance.
- Safety features include Under Voltage protection, Over Voltage protection, Overload protection, Over-Temp protection, Short Circuit protection, Ground protection, Earth Leakage protection (CCID 20), and Lightning protection.
Technical Specifications
- Charging Mode: App-Controlled/Plug-and-Play/RFID mode
- Indicator Lights: 4 LED Lights: standby, charging, fault, and network
- AC Power Input/Output Voltage: Level 2 AC-208-240V
- Adjustable Current: 6-40A
- Rated Frequency: 50/60 Hz
- Plug: NEMA 14-50
- Connector Type: SAE J1772 (Type 1)
- Box Dimensions: 12.2 x 8.6 x 3.7 inches (310 x 220 x 95 mm)
- Standard Cable Length: 16.4 ft. (5 m)
- Optional Cable Length: 24.6 ft. (7.5 m)
- Weight: 15 lbs. (7 kg)
- Working Temperature: -22 ~ 131℉ (-30 ~ 55℃)
- Storage Temperature: -40 ~ 167℉ (-40 ~ 75℃)
- Enclosure: PC + ASA
- Cable: PVC + Copper
What's in the box
- AC EV Charger (14-50P input power cable & 5m or 7.5m charging cable)
- Charging Dock
- Wall-mounting Accessories
- User Manual
- Quick User Guide
- Quality Certificate
- Wall Installation Template
- M6×63mm Expansion Bolt
- M5×40mm Expansion Bolt
- Charging Dock Installation Template
- IC Card
Warranty info
Three Year Warranty
