Autel Maxisys MS919
Autel Maxisys MS919
Couldn't load pickup availability

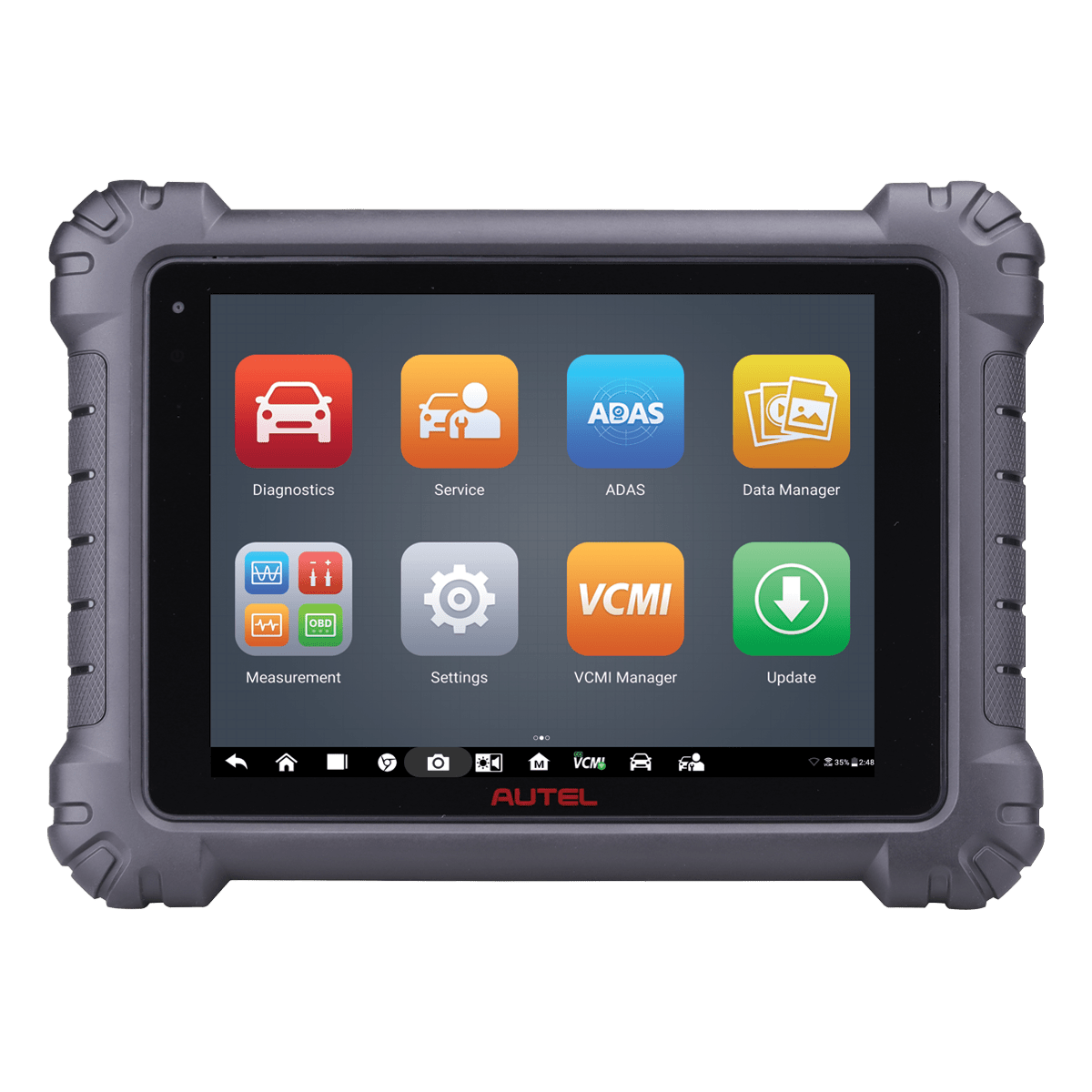

The MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The MS919 features dynamic topology module mapping for supported vehicles and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use.
All the details
Features
- Frame capable of performing 4-Wheel alignment and ADAS calibration
- Six high-resolution positioning and tracking cameras in frame
- Includes 24” touchscreen display that attaches to frame unit
- MaxiSYS software interface monitors and displays alignment measurements
- Cameras automatically track vehicle height on shop lift
- Robotic frame movement
- Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
- Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen
- Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
- One-year warranty
Technical Specifications
Operating SystemAndroid 7.0
ProcessorSamsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory4GB RAM & 256GB On-board Memory
Display12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity
- WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
- BT v.2.1 + EDR
- GPS
- USB 2.0 (Two USB HOST Type A, one USB mini device)
- HDMI 2.0
- SD Card (Support up to 256GB)
Camera
- Rear: 16 Megapixel, Autofocus with Flashlight
- Front: 5 Megapixel
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)Audio Input/Output
- Microphone
- Dual Speakers
- 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
- 18000mAh 3.8 V lithium-polymer battery
- Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V/3A Adapter
Operating Temp.0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight2.18kg (4.81 lb.)
Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
What's in the box
Warranty info
Warranty Continues with Customer's Subscription
1 Year of Free Software Upgrades
ADAS Compatible
The Autel Maxisys Ultra is ADAS Ready. Add ADAS Calibration services to your shop today!
-
