MAXISYS MS909 DIAGNOSTIC TABLET

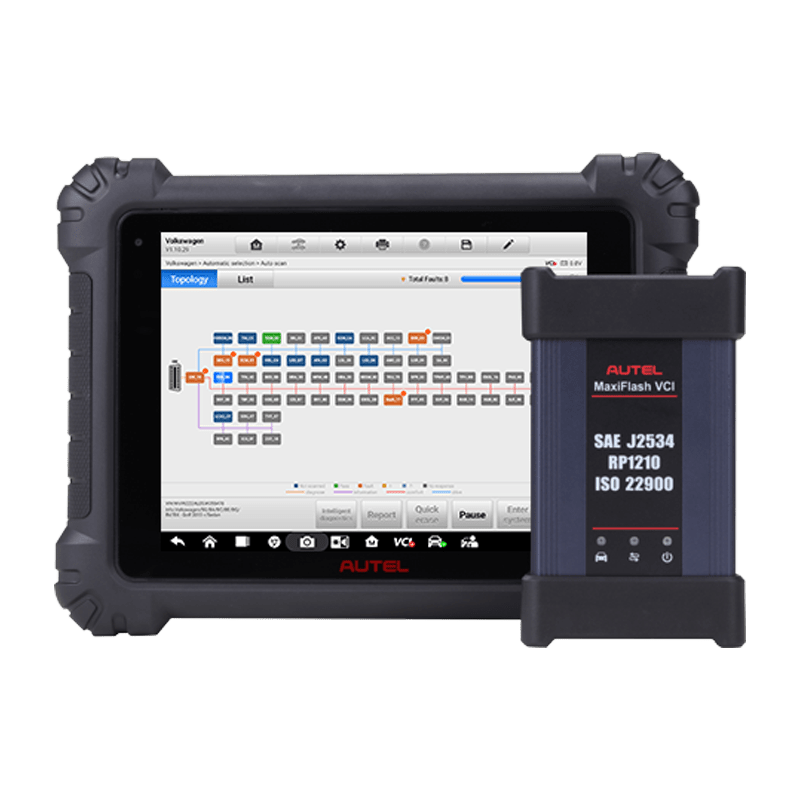

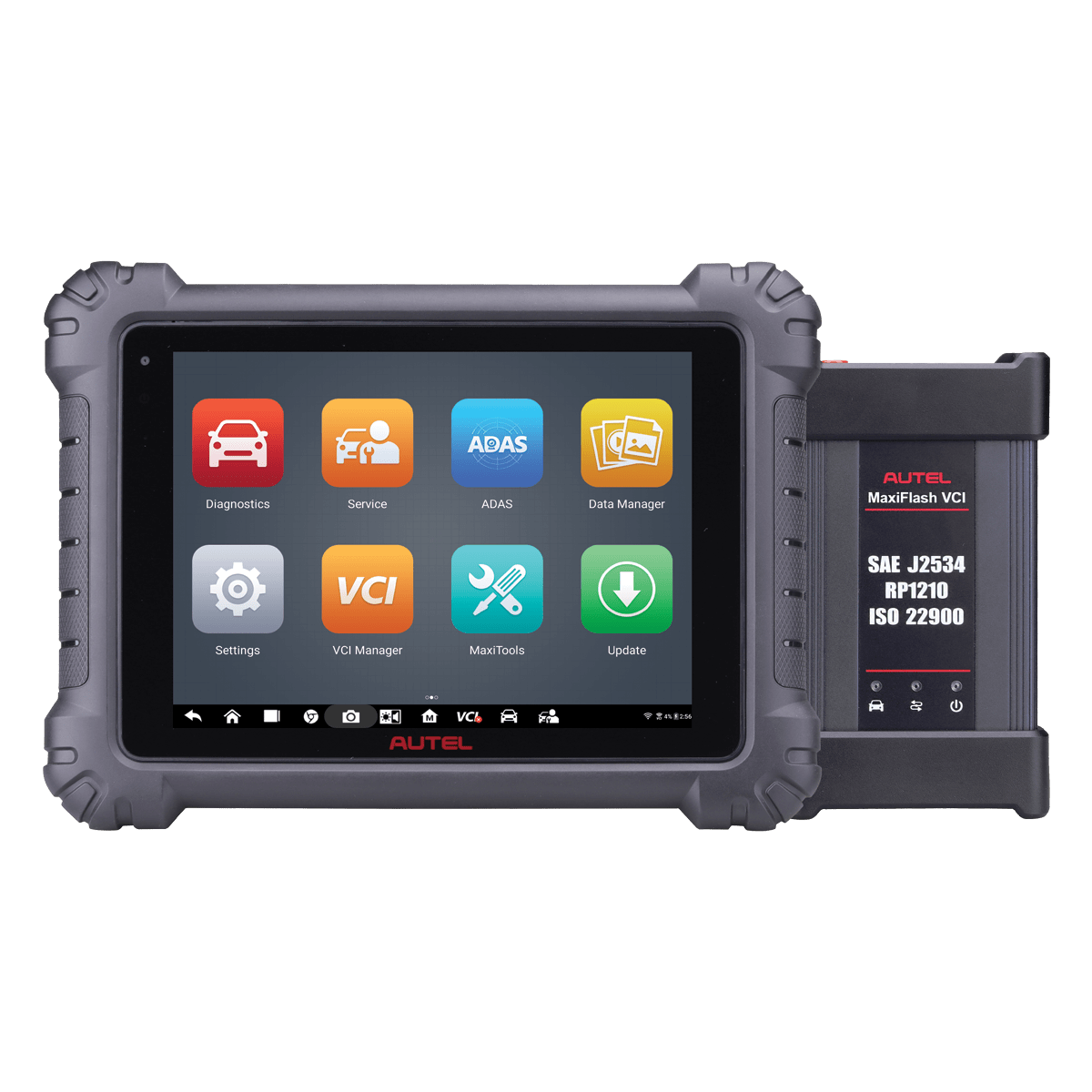

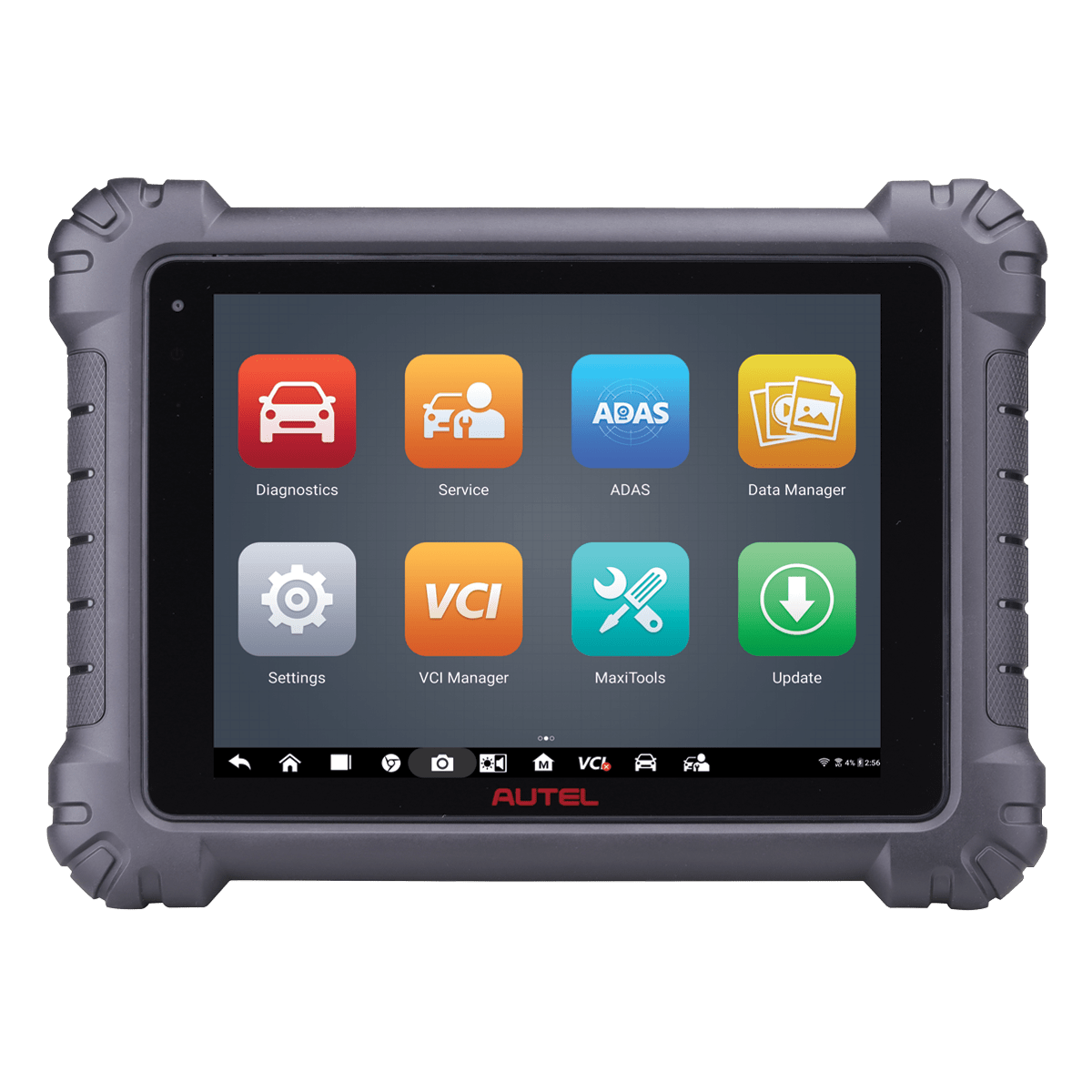

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
Share




All the details
Features
- Frame capable of performing 4-Wheel alignment and ADAS calibration
- Six high-resolution positioning and tracking cameras in frame
- Includes 24” touchscreen display that attaches to frame unit
- MaxiSYS software interface monitors and displays alignment measurements
- Cameras automatically track vehicle height on shop lift
- Robotic frame movement
- Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
- Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen
- Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
- One-year warranty
Technical Specifications
Operating SystemAndroid 7.0
ProcessorSamsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory4GB RAM & 256GB On-board Memory
Display12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity
- WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
- BT v.2.1 + EDR
- GPS
- USB 2.0 (Two USB HOST Type A, one USB mini device)
- HDMI 2.0
- SD Card (Support up to 256GB)
Camera
- Rear: 16 Megapixel, Autofocus with Flashlight
- Front: 5 Megapixel
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)Audio Input/Output
- Microphone
- Dual Speakers
- 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
- 18000mAh 3.8 V lithium-polymer battery
- Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12V/3A Adapter
Operating Temp.0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight2.18kg (4.81 lb.)
Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

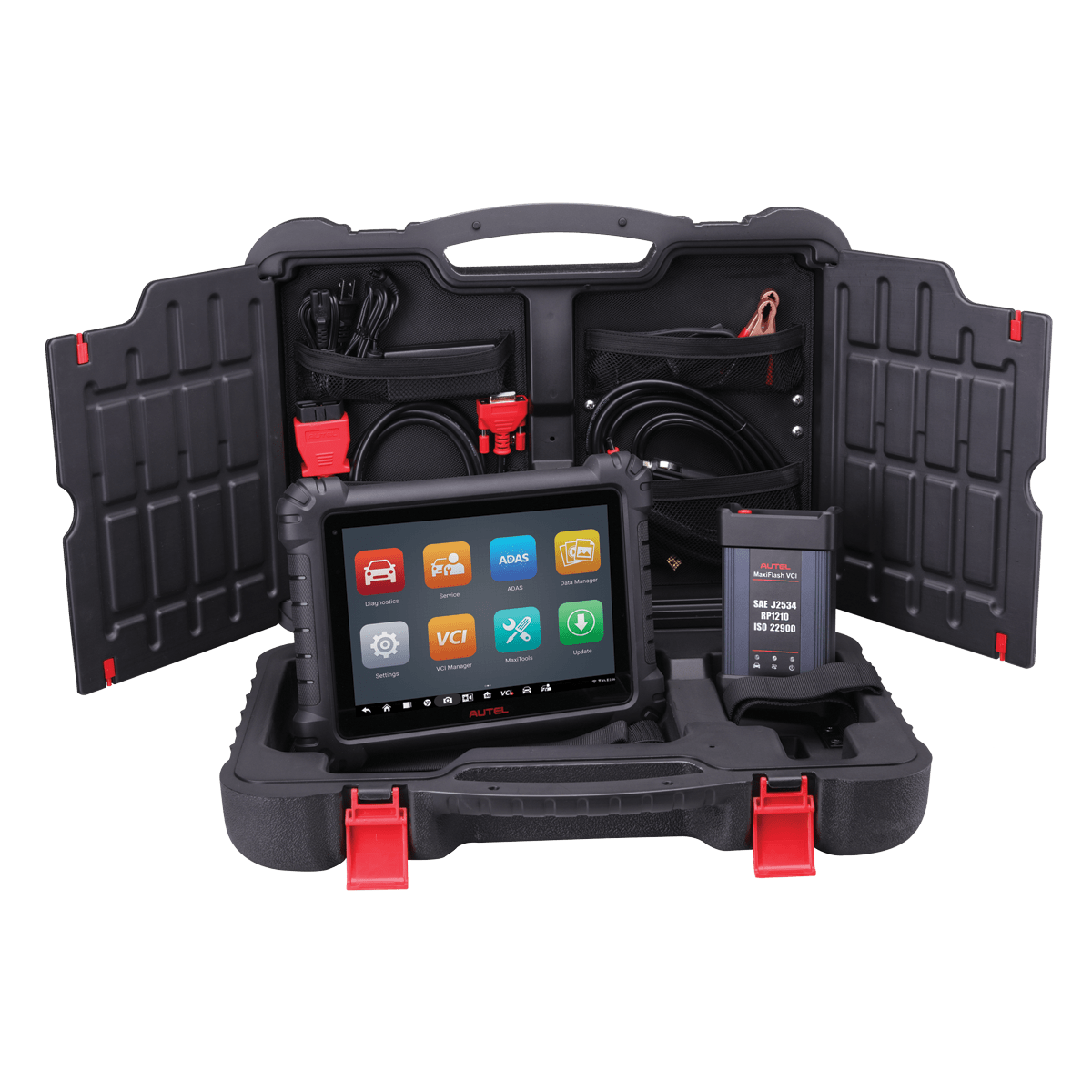

What's in the box
Warranty info
Warranty Continues with Customer's Subscription
1 Year of Free Software Upgrades

ADAS Compatible
The Autel Maxisys Ultra is ADAS Ready. Add ADAS Calibration services to your shop today!
-
