Autel

Autel CV ADAS LDW MA600 with MS909CV

Autel CV ADAS LDW MA600 with MS909CV

Regular price $17,230.00 USD
Regular price $17,775.00 USD Sale price $17,230.00 USD
Sale Sold out

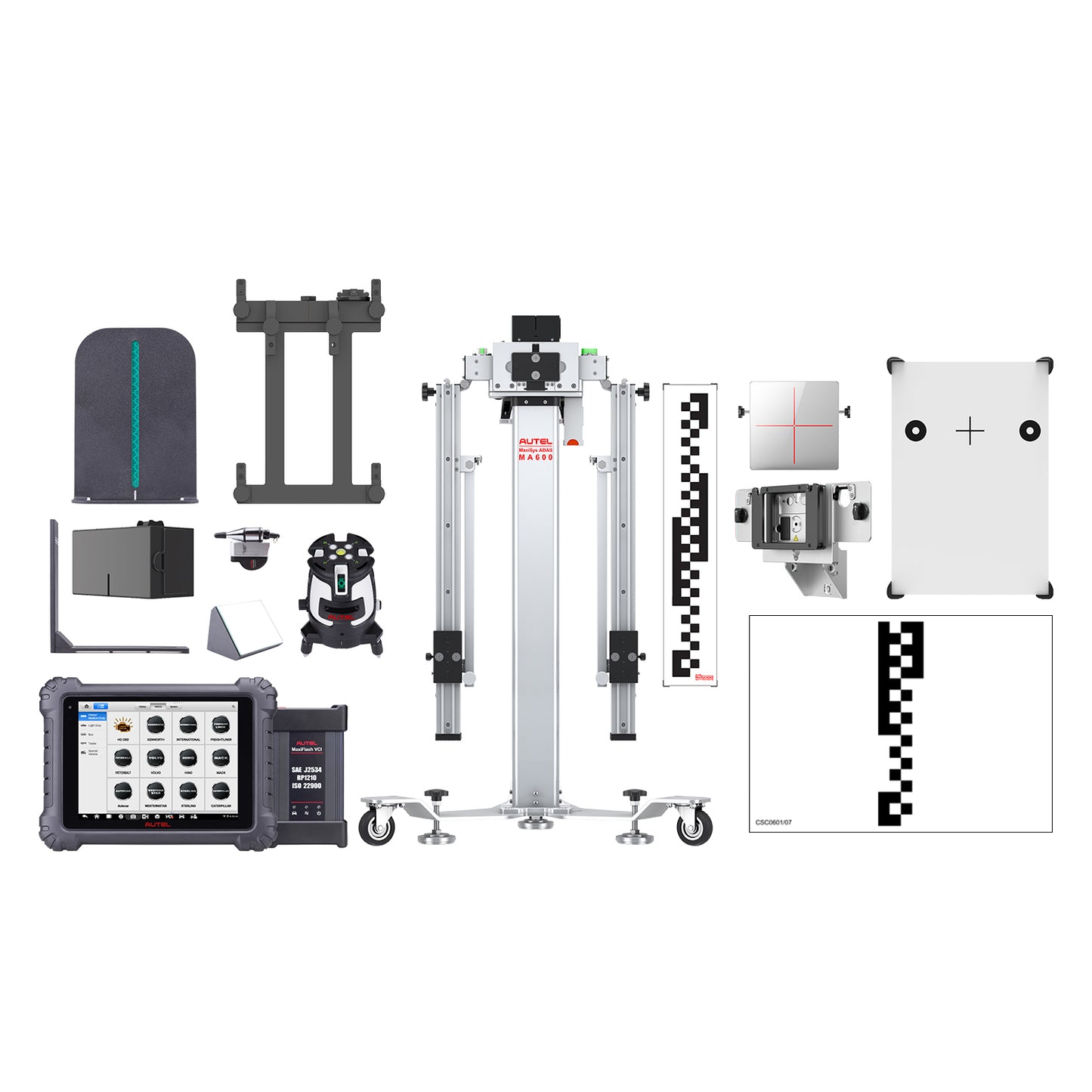

CVMALDWT - MA600 LDW Cal pkg with MS909CV for light, med. and heavy-duty vehicles

Perform static LDW calibrations on light, medium, and heavy-duty vehicles with the CVMALDWT, CV ADAS LDW MA600 system package. CVMALDWT includes a MaxiSYS ADAS MA600 mobile ADAS system with positioning tools, including 5- and 2-line lasers. Includes MaxiSYS 909CV tablet, currently supporting dynamic calibration on Class 3-5 vehicles and Class 6-8 vehicles and static calibration setup and software Mercedes-Benz Sprinter and RAM ProMaster vans and for heavy-duty vehicles equipped with Bendix® Wingman® system. Includes LDW patterns for Mercedes-Benz Sprinter vans, RAM ProMaster vans, and front collision warning and LDW pattern (CV pattern CSC0611-06) for heavy-duty vehicles equipped with Bendix® Wingman® system. Includes CV Pattern Bracket, and ACC reflector for radar-equipped Bendix® Wingman® system calibration
The package is covered by a one-year limited warranty.

• Perform static front camera calibrations, including Lane Departure Warning system calibrations on applicable light, medium, and heavy-duty vehicles
• Includes MaxiSYS ADAS MA600 mobile frame and positioning tools, including 2- and 5-line lasers
• Includes  MaxiSYS 909CV tablet currently supporting dynamic calibration on Class 3-5 vehicles and Class 6-8 vehicles and static calibration setup and software Mercedes-Benz Sprinter and RAM ProMaster vans and for heavy-duty vehicles equipped with Bendix® Wingman® system
• Includes LDW patterns for Mercedes-Benz Sprinter vans, RAM ProMaster vans, and front collision warning and LDW pattern (CV pattern CSC0611-06) for heavy-duty vehicles equipped with Bendix® Wingman® system
•Includes CV pattern bracket
•Includes ACC reflector for radar-equipped Bendix® Wingman® system calibration
• A one-year limited warranty covers the package

View full details

All the details

Features

MA600 Mobile Frame ADAS All Systems Includes:

  • ADAS Calibration Software Upgrade
  • MA600 Foldable Calibration Frame
  • Honda / Acura- LDWII CSC0601/08-R
  • Honda / Acurai – LDWII CSC0601/08-L
  • Volkswagen / Audi / Porche – LDWI CSC0601/01
  • Mercedes-LDWI CSC0601/02
  • Mercedes – LDWII CSC0601-19
  • Honda / Acura – LDWI CSC0601/05
  • Hyundai / KIA – LDW CSCO601/09
  • Toyota / Lexus – LDWI CSC0601/11
  • Hyundai / KIA-LDWII CSC0601/07
  • Nissan – LDWII CSC0601/03-L
  • Nissan – LDWII CSC0601/03-R
  • Toyota – LDWII CSC0601/15
  • Mitsubishi – LDWI CSC0601/22-L
  • Mitsubishi – LDWI CSC0601/22-R
  • Mazda – LDWI CSC0601/12
  • Nissan / Infiniti – LDWI CSC0601/06-L
  • Nissan / Infiniti – LDWI CSC0601/06-R
  • Mazda – LDWII CSC0601/13-L
  • Mazda – LDWII CSC0601/13-R
  • Subaru – LDWI CSC0601/14
  • Nissan – LDWIII CSC0601/04-L
  • Nissan – LDWIII CSC0601/04-R
  • Toyota / Lexus – LDWIII CSC601/25
  • Hyundia / KIA – LDW111 CSC701/23
  • Toyota LDWIV – CSC0601/11-01
  • VW AVM CSC804/01
  • Honda AVM CSC1004/02
  • Honda AVM CSC1004/03
  • Cadillac AVM CSC1004/06
  • Hyundai/ KIA AVM CSC1004/04
  • VAG/GM NV Calibrator CSC603/01
  • Lexus NV Pattern CSC603/03
  • Mercedes NV Stand CSC803/01
  • ACC Reflector CSC0602/01
  • Radar Calibration Plate CSC602/02
  • Radar Calibration Box CSC605/01
  • Corner Reflector Stand CSC800
  • Corner Relector CSC802/01
  • Target Stand CSC802
  • VW RCWI CSC806/01
  • Mercedes RCWI CSC1006/01
  • Nissan RCWI CSC1006/03
  • Mounting Plate: FrameAdapter For Select Accessories MA600RAP
  • L-shaped Bracket: Assist with measuring distance from front wheel for frame placementCSC1500/04
  • Laser Assist Mirror: Easier viewing under the car to set centerlineCSC1500/06
  • Plumb Line: Transfer centerline of vehicle to point on ground CSC1500/07
  • Laser Assisted Board: Used with Five Line or Two Line laser to find vehicle centerlineCSC1500/08
  • Five Line Laser: Used to find perpendicular axis from any pointCSC1500/05
  • Two Line Laser: Used to align calibration frame to vehicle centerlineCSC1500/03
  • Subaru LDW 3 CSC0601/17 Target Board
  • Alfa Romeo LDW CSC0601/10 Target Board
  • Toyota One Time Recognition LDW CSC0601/25 Target Board
  • Honda LDW 3 CSC0601/24-01
  • Mitsubishi AVM CSC1004/09
  • Honda LaneWatch CSC0805/02
  • Target Stand CSC0802
  • Hitachi Radar Plate CSC0802/03
  • Nissan RCW CSC1006/05
  • Toyota-AVM CSC1004/10
  • Hyundai/Kia vehicles equipped with AVM CSC1004/04
  • RCW for Mercedes CSC1006/02
  • VW/Audi ADR Calibration Plate CSC0602/08
  • Toyota LIDAR Reflector CSC802/04
  • VW/Audi LIDAR Calibration Board CSC602/04
  • Toyota/ Lexus vehicles equipped with NVS CSC603/03
  • Nissan/Infiniti vehicles equipped with AVM CSC1004/11

Technical Specifications

  • Weight 1025 lbs
  • Height 74 in
  • Length 105 in
  • Width 42 in

What's in the box

Warranty info

1 Year

Compatible with Multiple Autel Tablets

  • Autel Maxisys Ultra
  • Autel Maxisys MS919
  • Autel Maxisys MS909
  • Autel Maxisys MS906 Pro-TS
  • Autel Maxisys MS906 Pro
  • Oversized Item

    This item requires Truck LTL Shipping

  • Hassle-Free Exchanges

    Purchase with confidence. Exchanges allowed in the first 30 days. Contact us for details
