Autel

Autel ADAS Bay Max 14K Lift - AULS14ALOR1T

Autel ADAS Bay Max 14K Lift - AULS14ALOR1T

Regular price $44,000.00 USD
Regular price $45,000.00 USD Sale price $44,000.00 USD
Sale Sold out

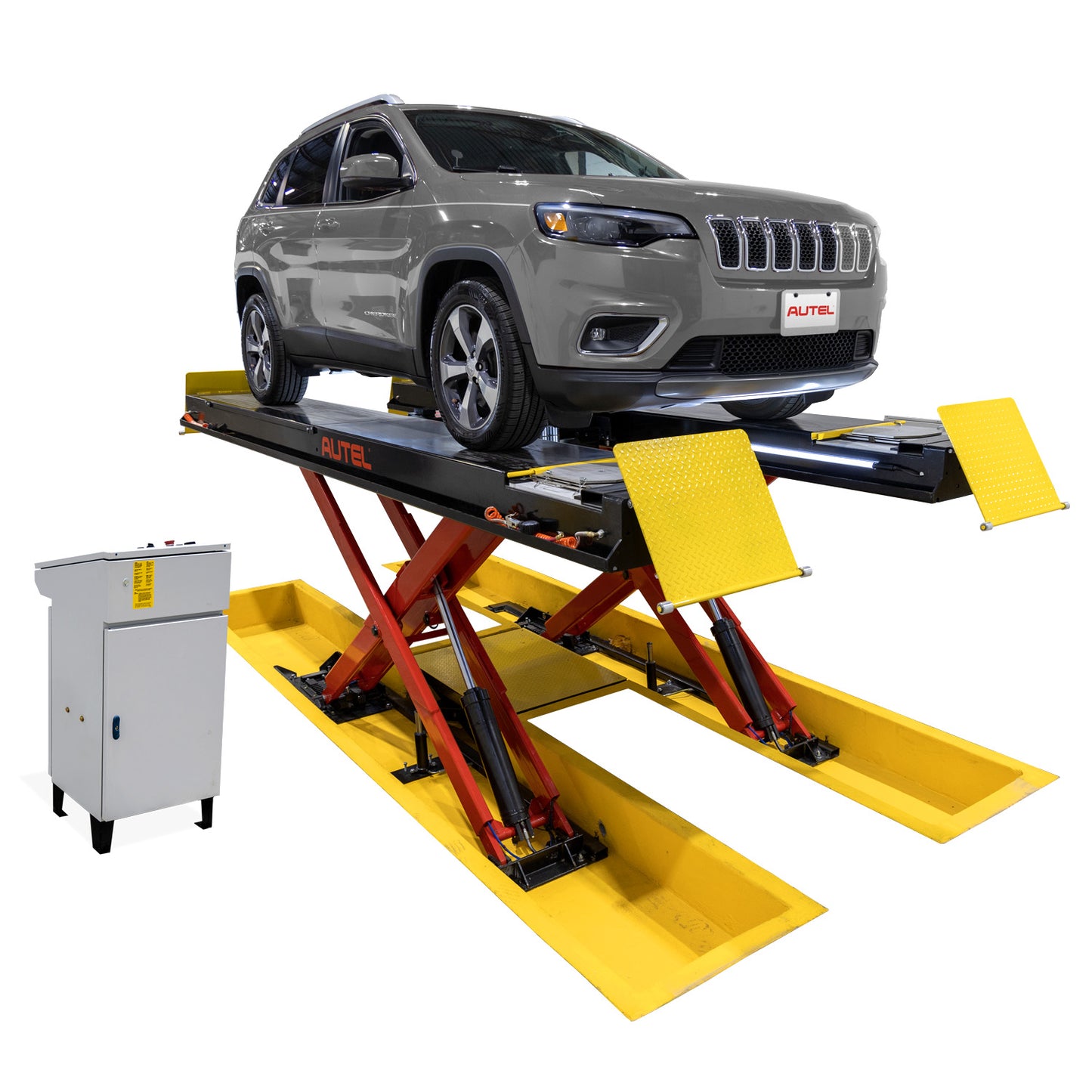

The Autel ADAS 14K Scissor Lift is a 14,000-pound capacity, flush/surface-mounted specially designed alignment lift with Floor Lift Table that enables ADAS calibrations to be performed within bay space. This premium hydraulic lift, which is compatible with passenger and light trucks, includes two 7K capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203"-long, 26"-wide. Low angle approach ramps for easy access. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Made in North America and ALI Certified. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24-inch LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. Autel logo labeled. One-year Limited Warranty on Lift parts, Five year Warranty on Hydraulic Jack parts., One year warranty on Lift Table parts and hydraulic components, 90 days on front turn plates, rear slip plate and bearings, air kit and LED light kits.
View full details

All the details

Features

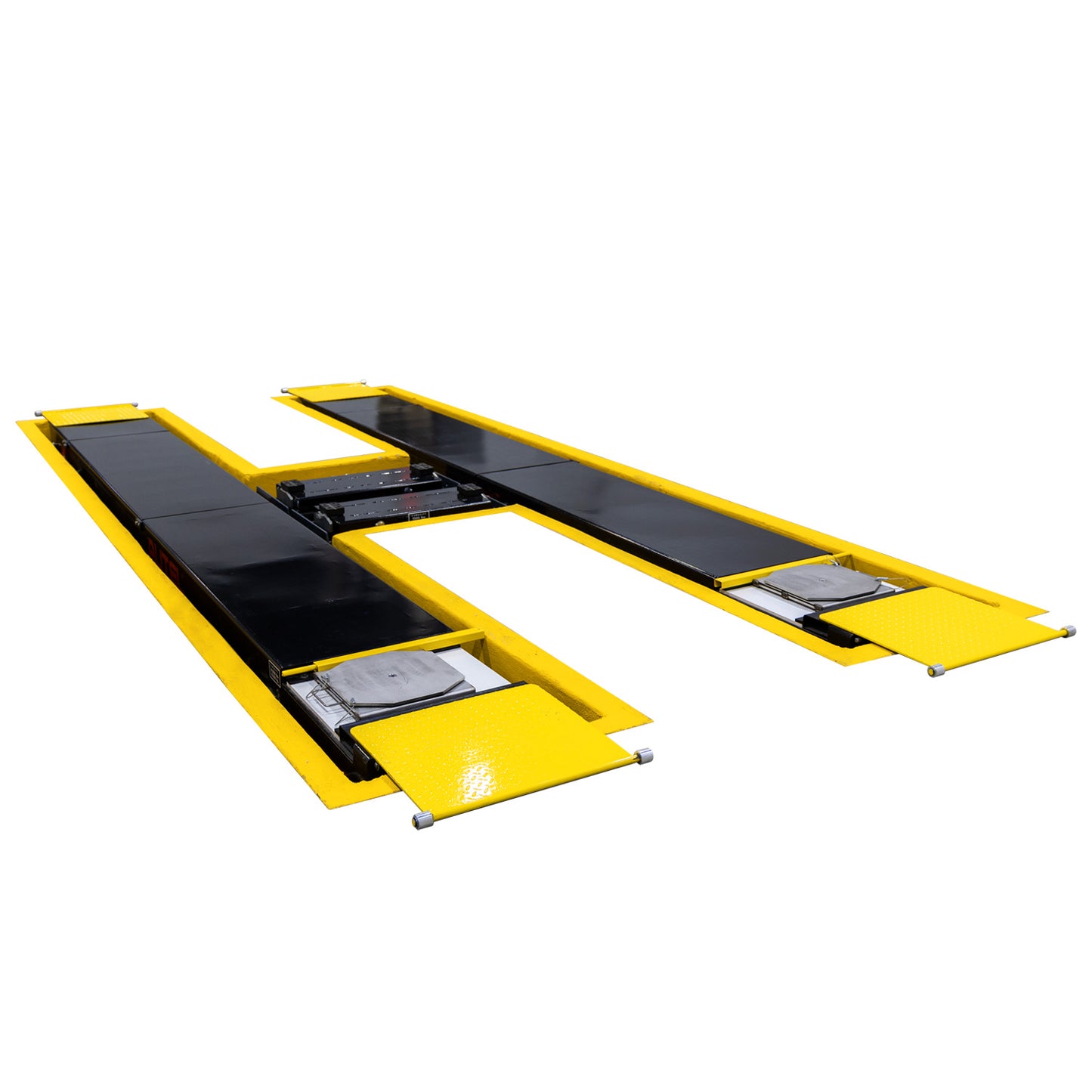

- Flush-mounted Hydraulic Alignment Scissor 12K or 14K Lift with Floor Lift
Table
- Specially designed Alignment lift that enables ADAS calibrations to be
performed within bay space

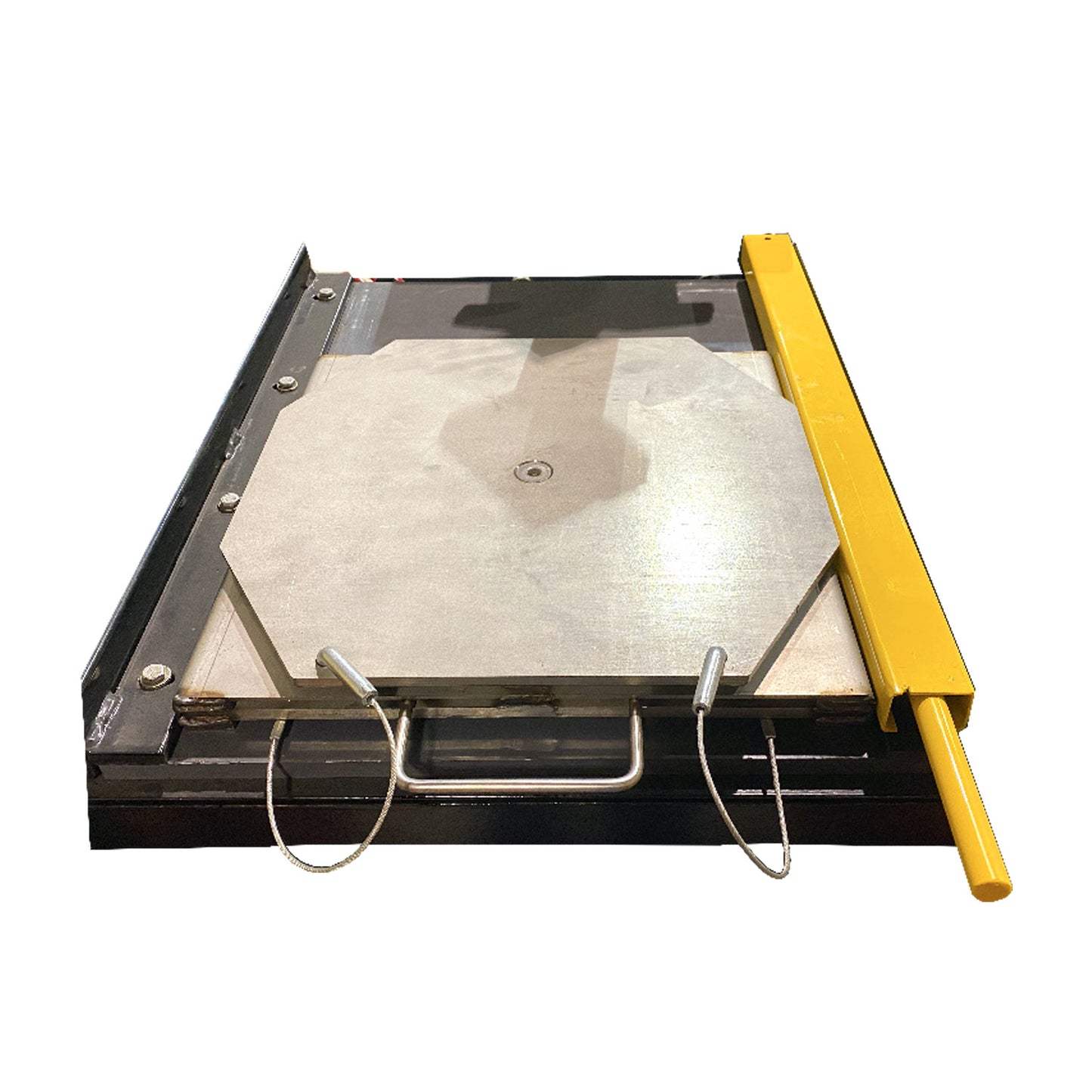

- Stainless Steel Front Radius Plates and Rear Slip Plates

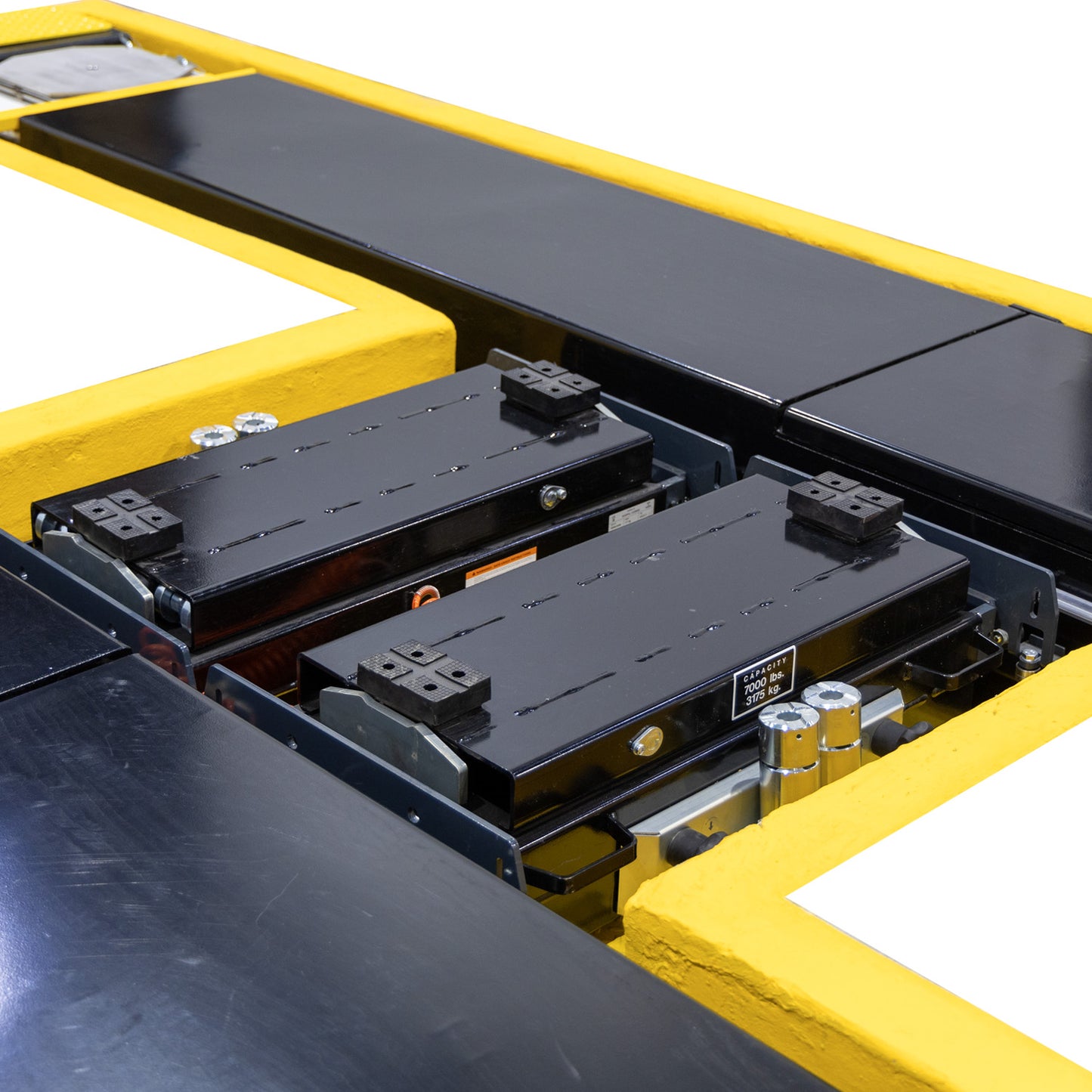

- Includes two 7K capacity Jacking Beams (6K capacity with 12K lift)
- Front and Rear-opening Runways with Flip Down Wheel Stops
- 203"-long, 26"-wide Space Saving Runways on 14K Lift

- 185"-long, 26"-wide Space Saving Runways on 12K Lift

- Made in North America and ALI Certified

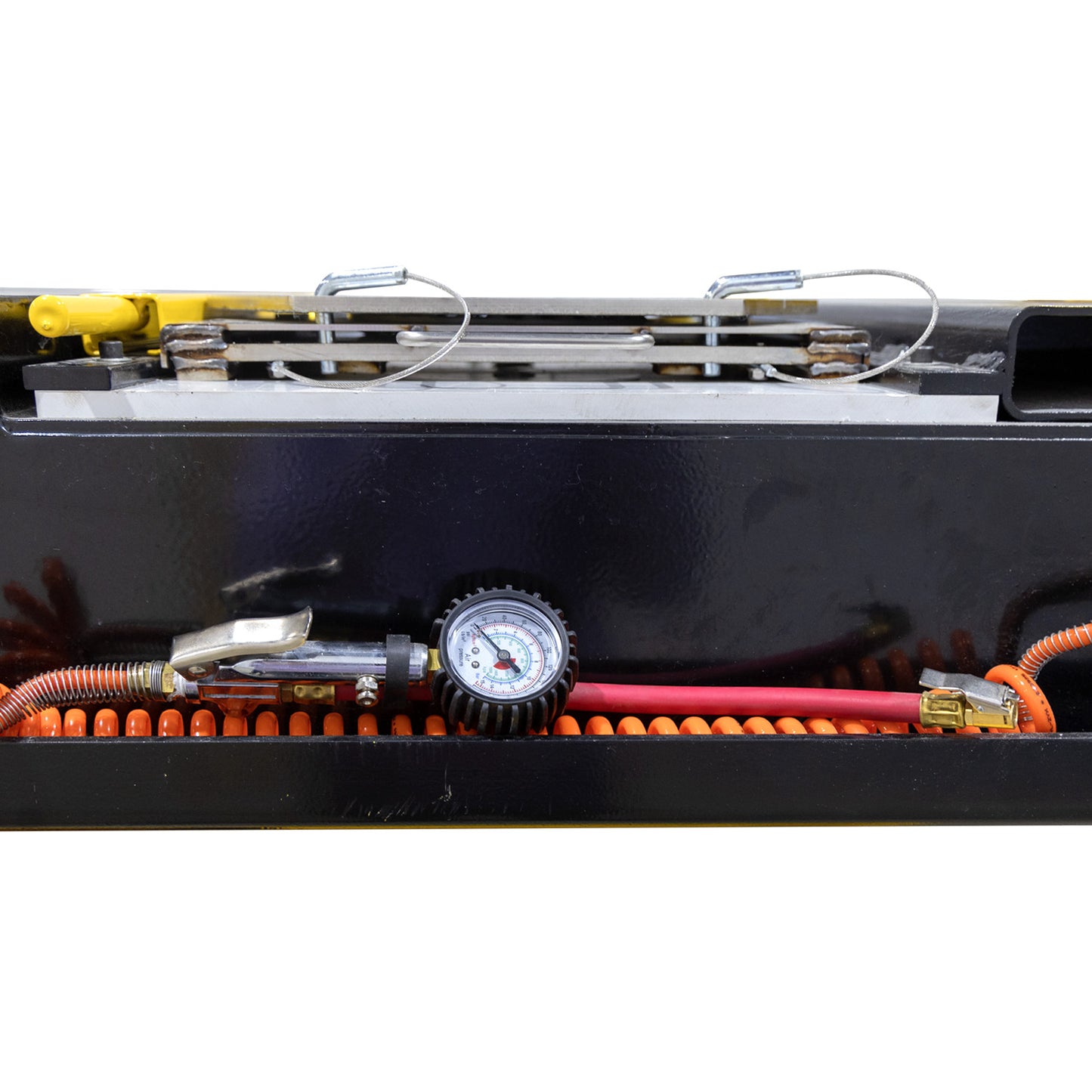

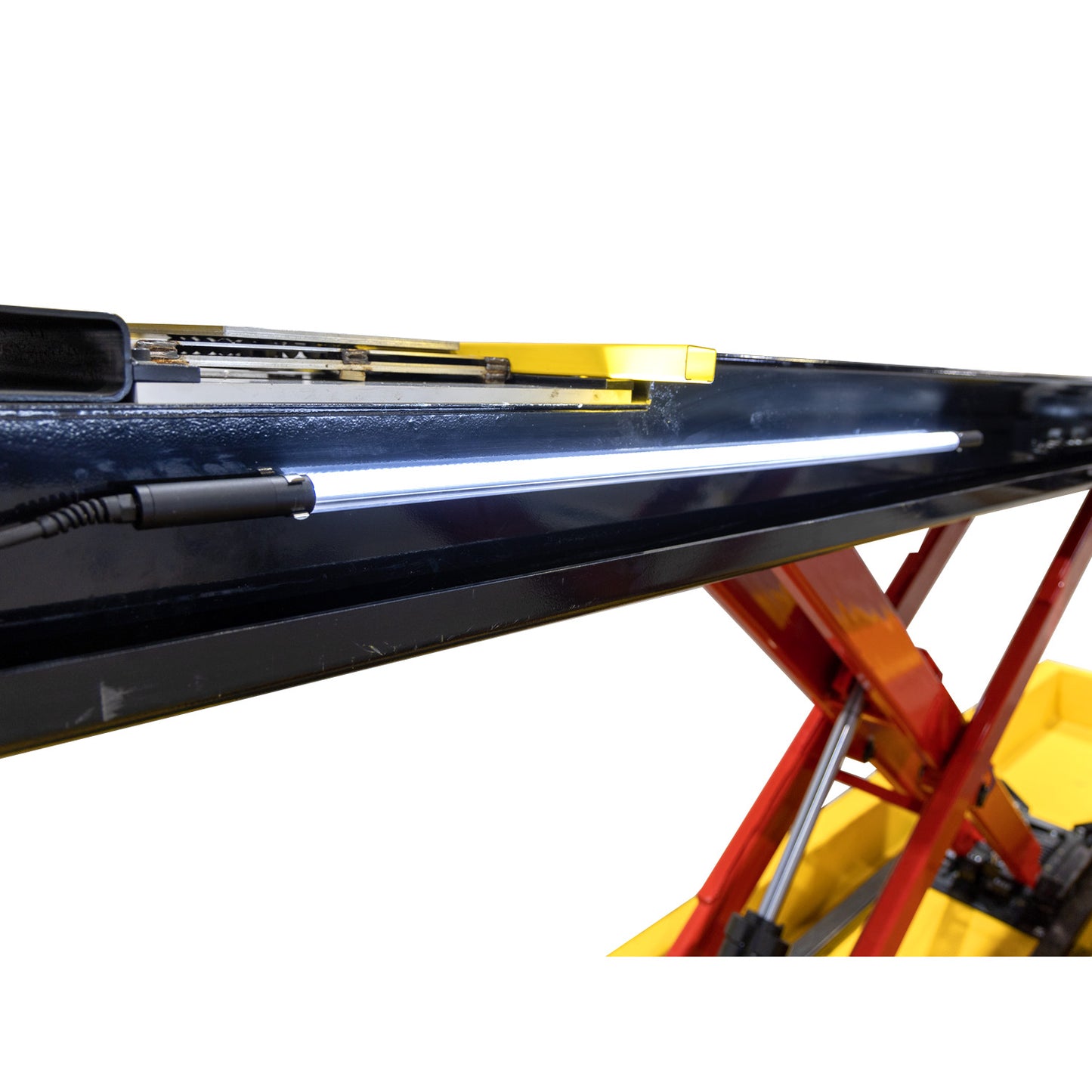

- Built-in Runway Air Tire inflation Kit at each wheel and Shatterproof LED
Light Kits

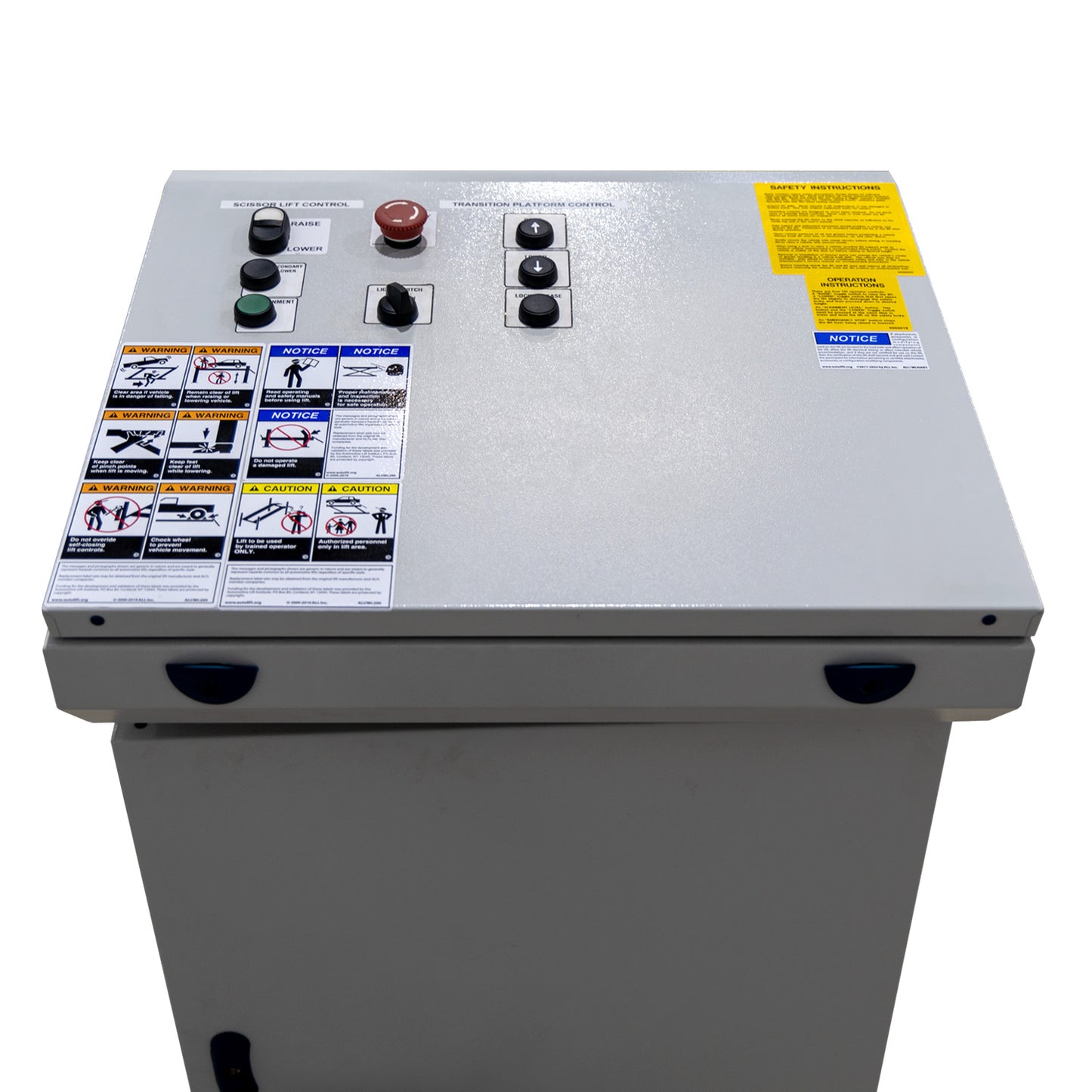

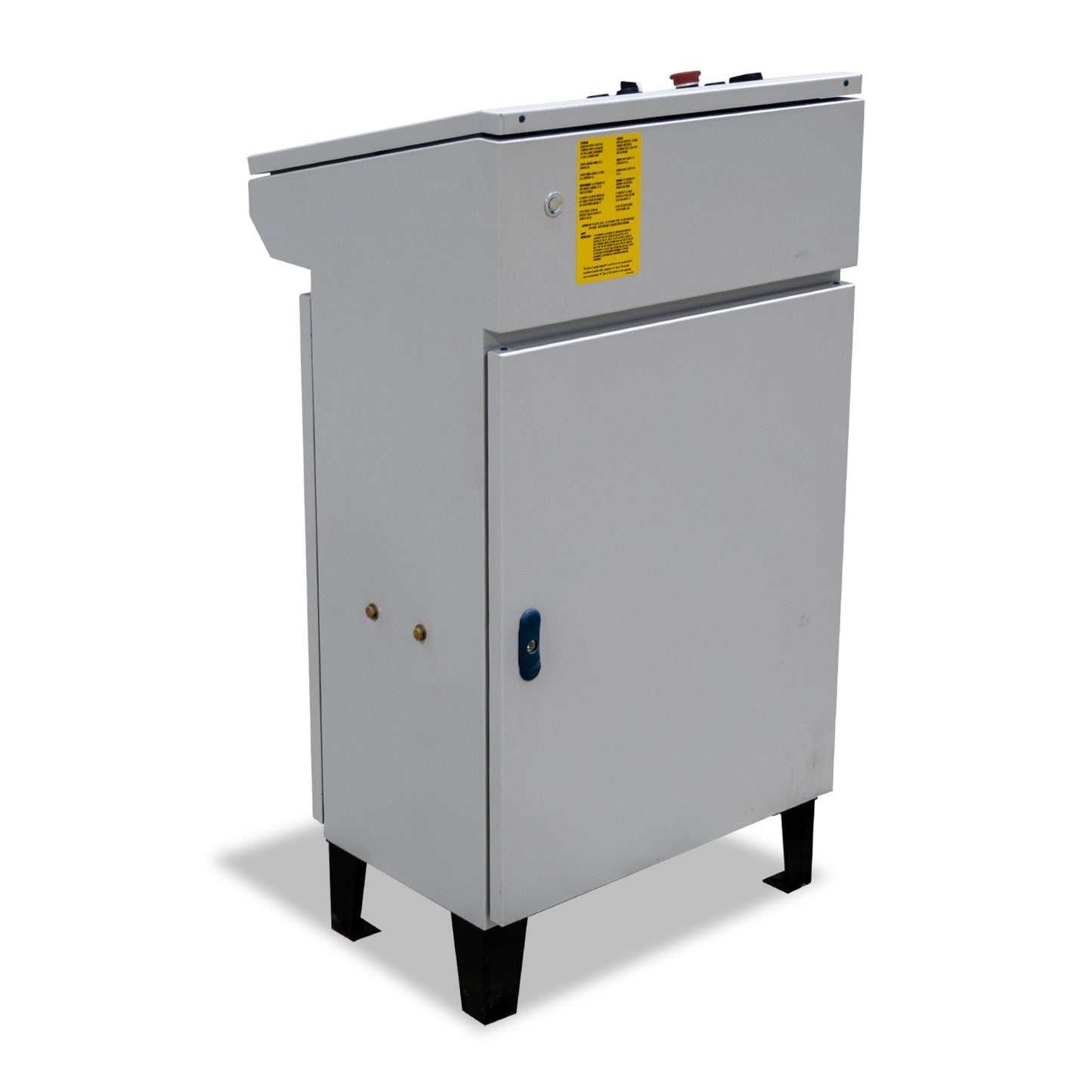

- Enclosed Console Control Power Unit
- Premium Double Baked Powder Coating Finish and Industrial-grade Rust
Proofing

Technical Specifications

Flush-mounted,
14K Lbs. capacity, scissor lift designed for ADAS calibrations

Weight 7450.00

Height 38.00 In

Length 258.00 In

Width 48.00 In

14K ADAS
Scissor Lift

Flush-mounted,
12K Lbs. capacity, scissor lift designed for ADAS calibrations

Weight 7050.00 lbs

Height 38.00 In

Length 240.00 In

Width 48.00 In

12K ADAS
Scissor Lift

Warranty info

One-year Limited Warranty on Lift parts

Five year Warranty on Hydraulic Jack parts

One year warranty on Lift Table parts and hydraulic components

90 days on front turn plates, rear slip plate and bearings, air kit and LED light kits.

Designed for ADAS

The Autel ADAS Bay Max lifts are designed for ADAS calibrations and are equally at home in Alignment shops.

  • Free Shipping

    Allow 6 weeks lead time on all lift orders.

  • Installation not included

    A member of the Autel installation team will contact you to quote and schedule installation.
