Autel ADAS Bay Max 12K Lift - AULS12ALOR1T
Autel ADAS Bay Max 12K Lift - AULS12ALOR1T

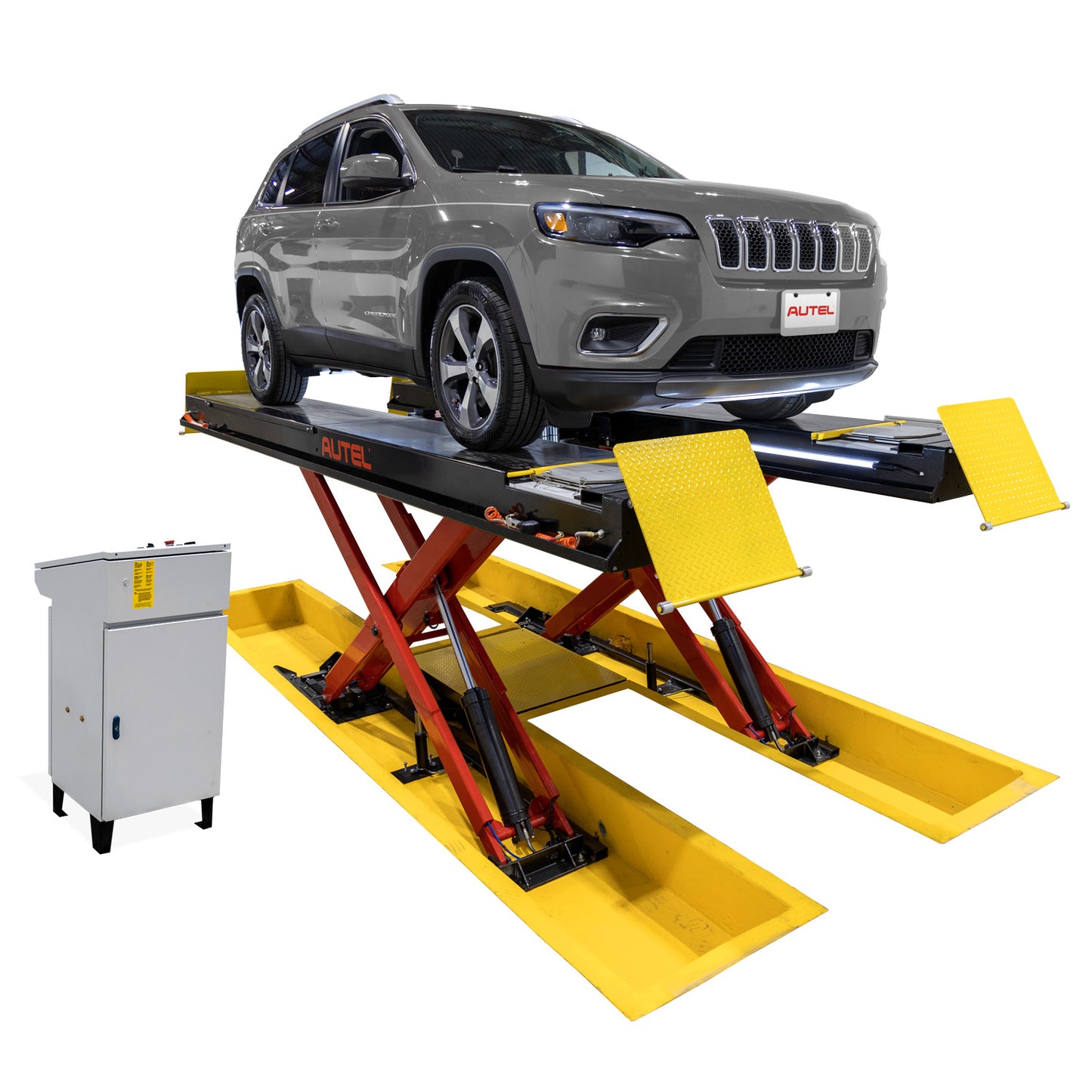

The Autel ADAS 12K Scissor Lift is a 12,000-pound capacity, flush/surface-mounted specially designed alignment lift with Floor Lift Table that enables all ADAS calibrations to be performed within bay space. This premium hydraulic lift, which is compatible with passenger and light trucks, includes two 6K capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 185"-long, 26"-wide. Low angle approach ramps for easy access. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Made in North America and ALI Certified. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24-inch LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. Autel logo labeled. One-year Limited Warranty on Lift parts, Five year Warranty on Hydraulic Jack parts., One year warranty on Lift Table parts and hydraulic components, 90 days on front turn plates, rear slip plate and bearings, air kit and LED light kits. |
Share
All the details
Features

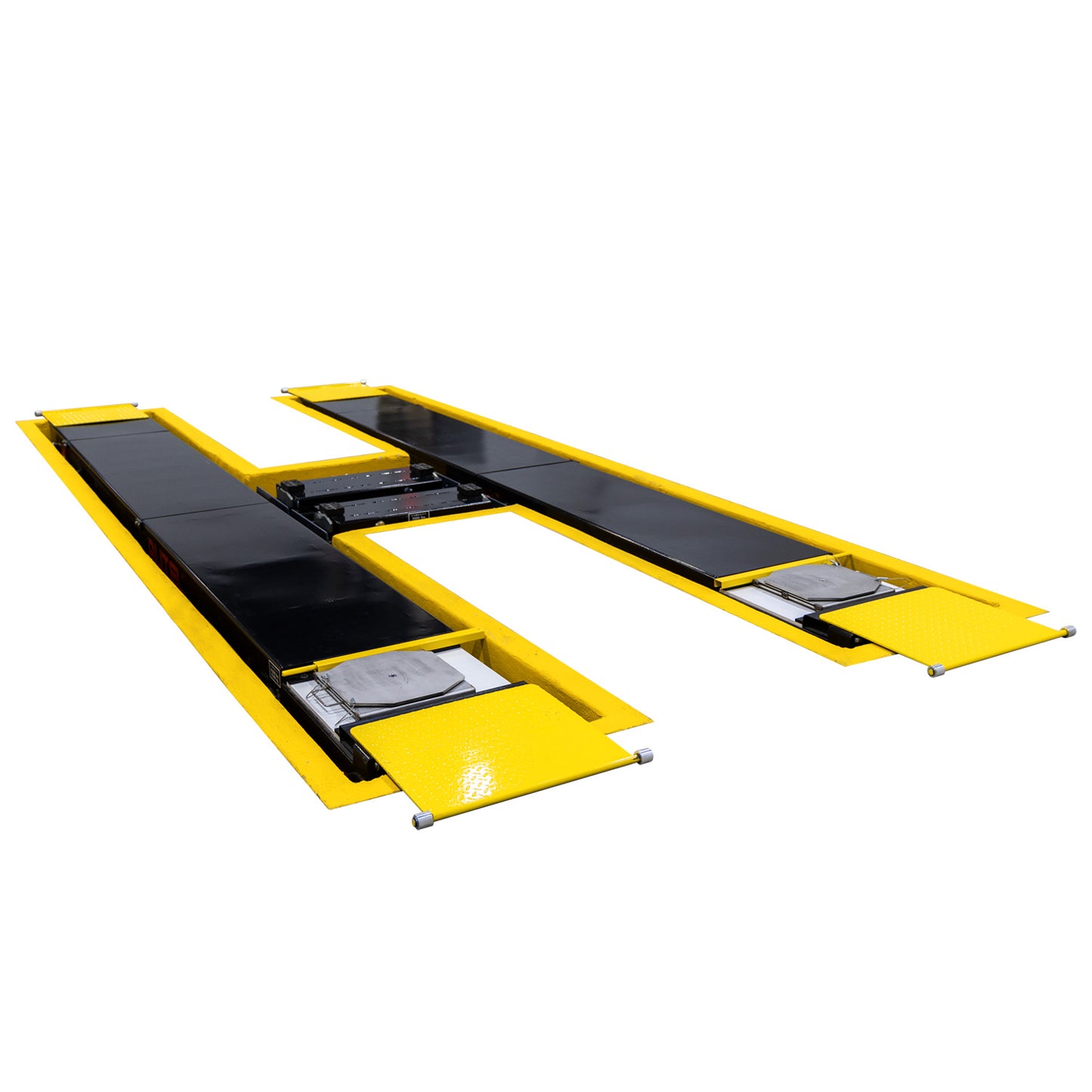

- Flush-mounted Hydraulic Alignment Scissor 12K or 14K Lift with Floor Lift
Table
- Specially designed Alignment lift that enables ADAS calibrations to be
performed within bay space

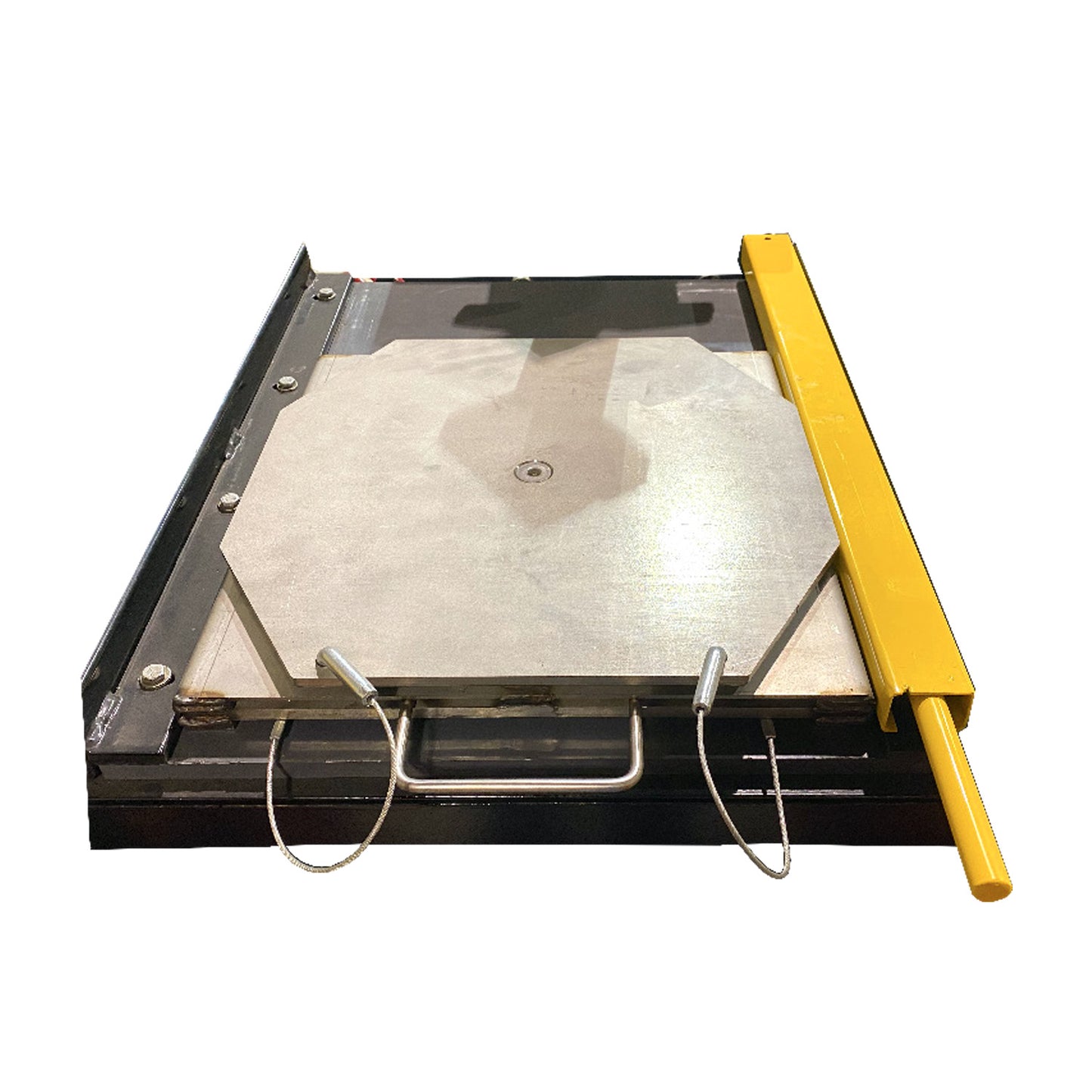

- Stainless Steel Front Radius Plates and Rear Slip Plates

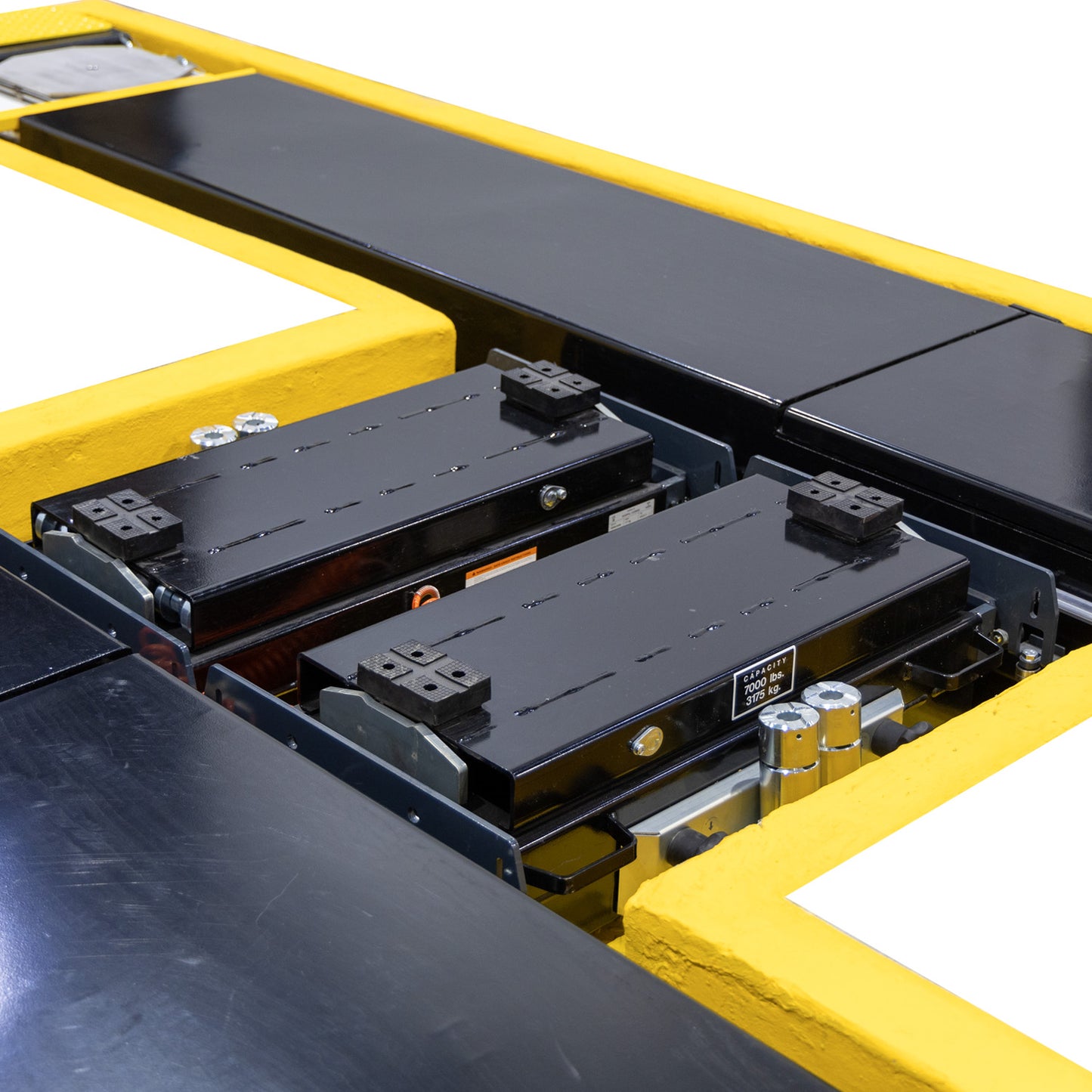

- Includes two 7K capacity Jacking Beams (6K capacity with 12K lift)
- Front and Rear-opening Runways with Flip Down Wheel Stops
- 203"-long, 26"-wide Space Saving Runways on 14K Lift
- 185"-long, 26"-wide Space Saving Runways on 12K Lift
- Made in North America and ALI Certified

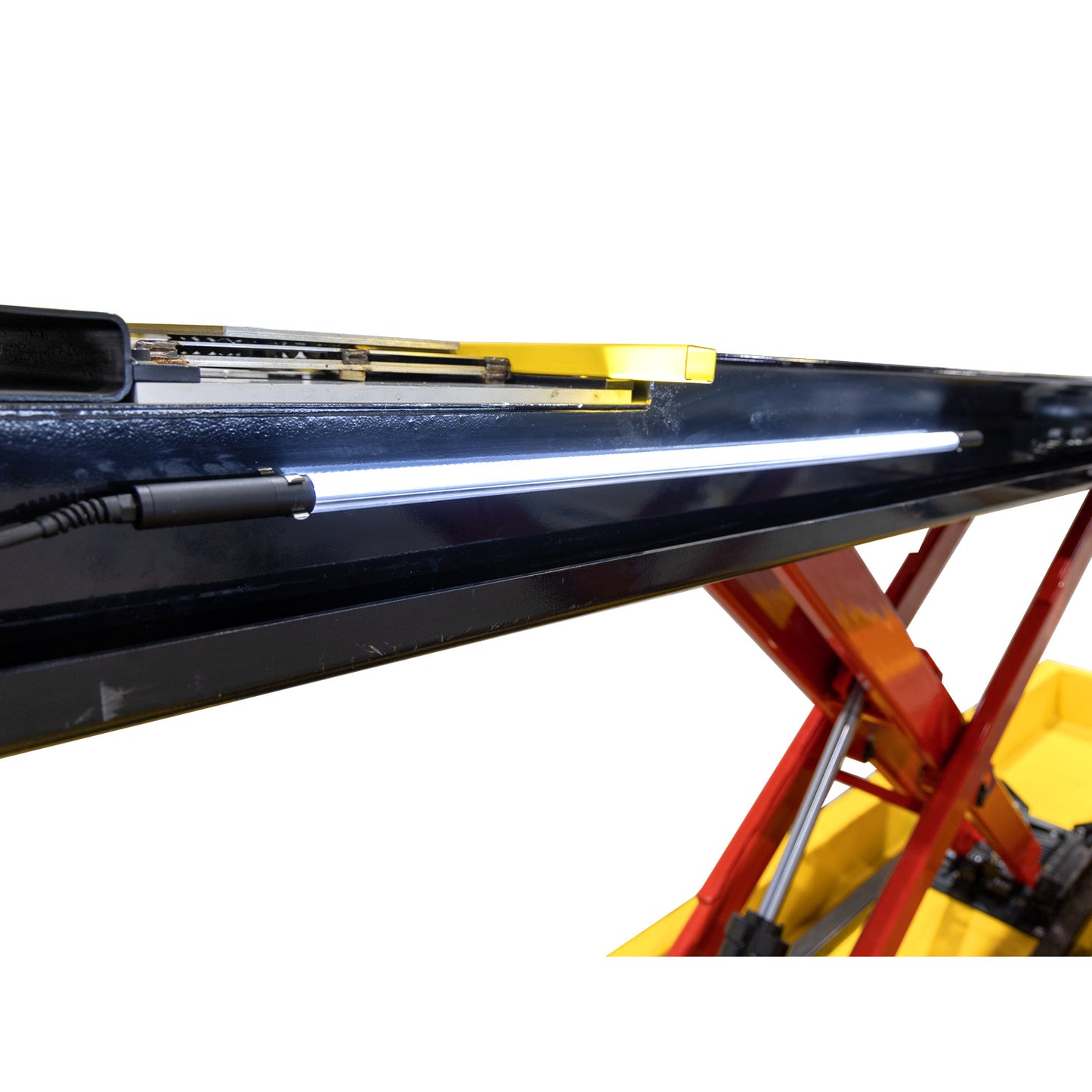

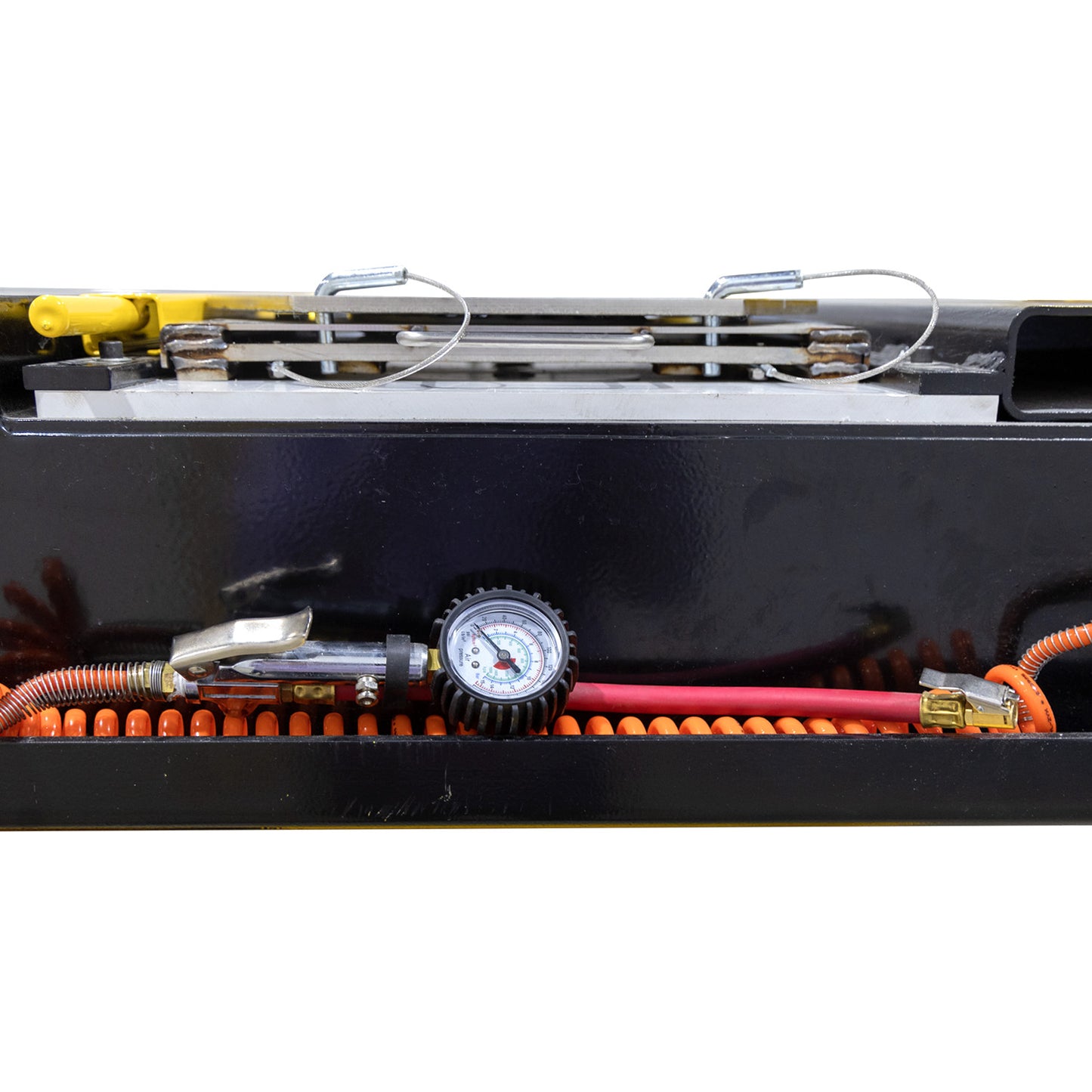

- Built-in Runway Air Tire inflation Kit at each wheel and Shatterproof LED
Light Kits

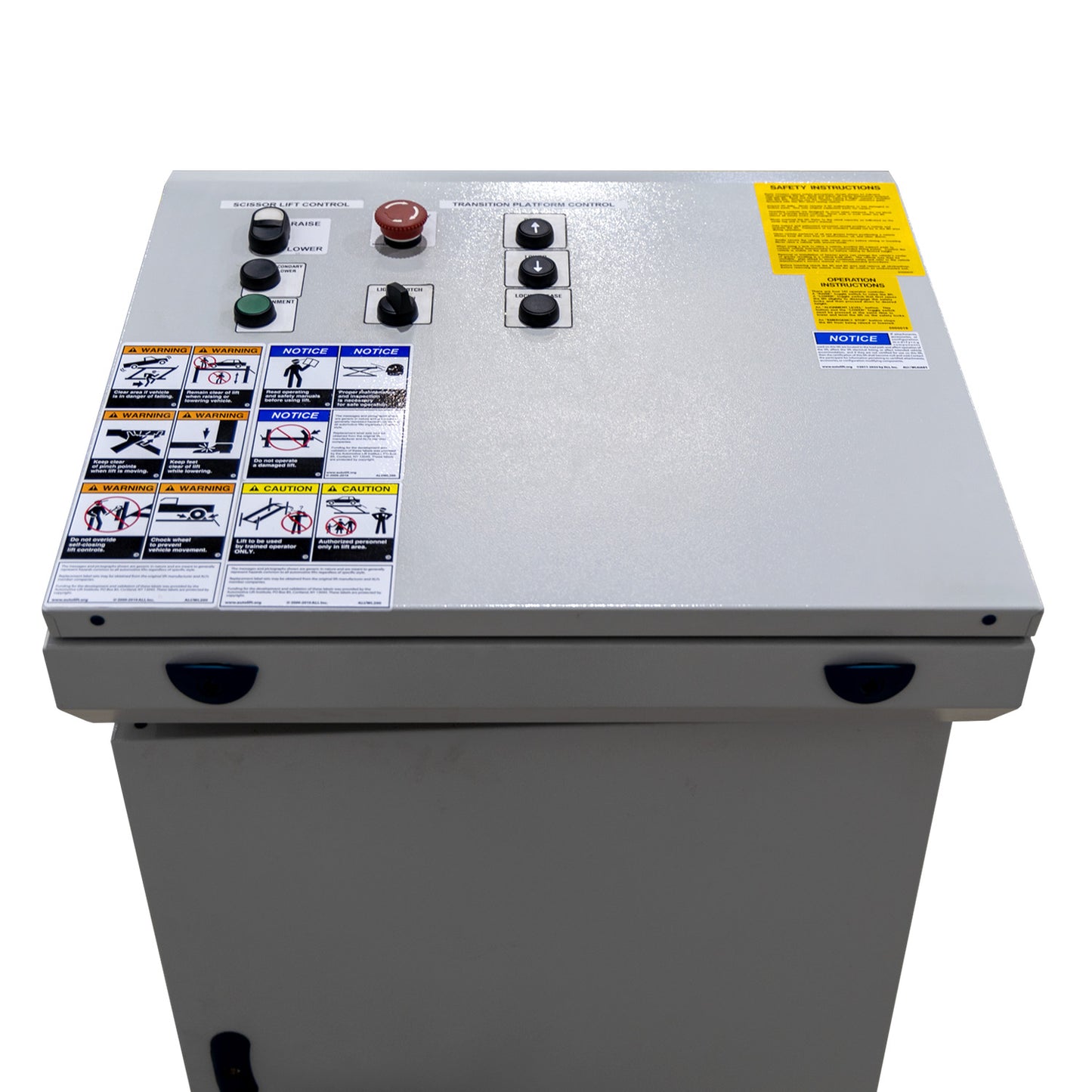

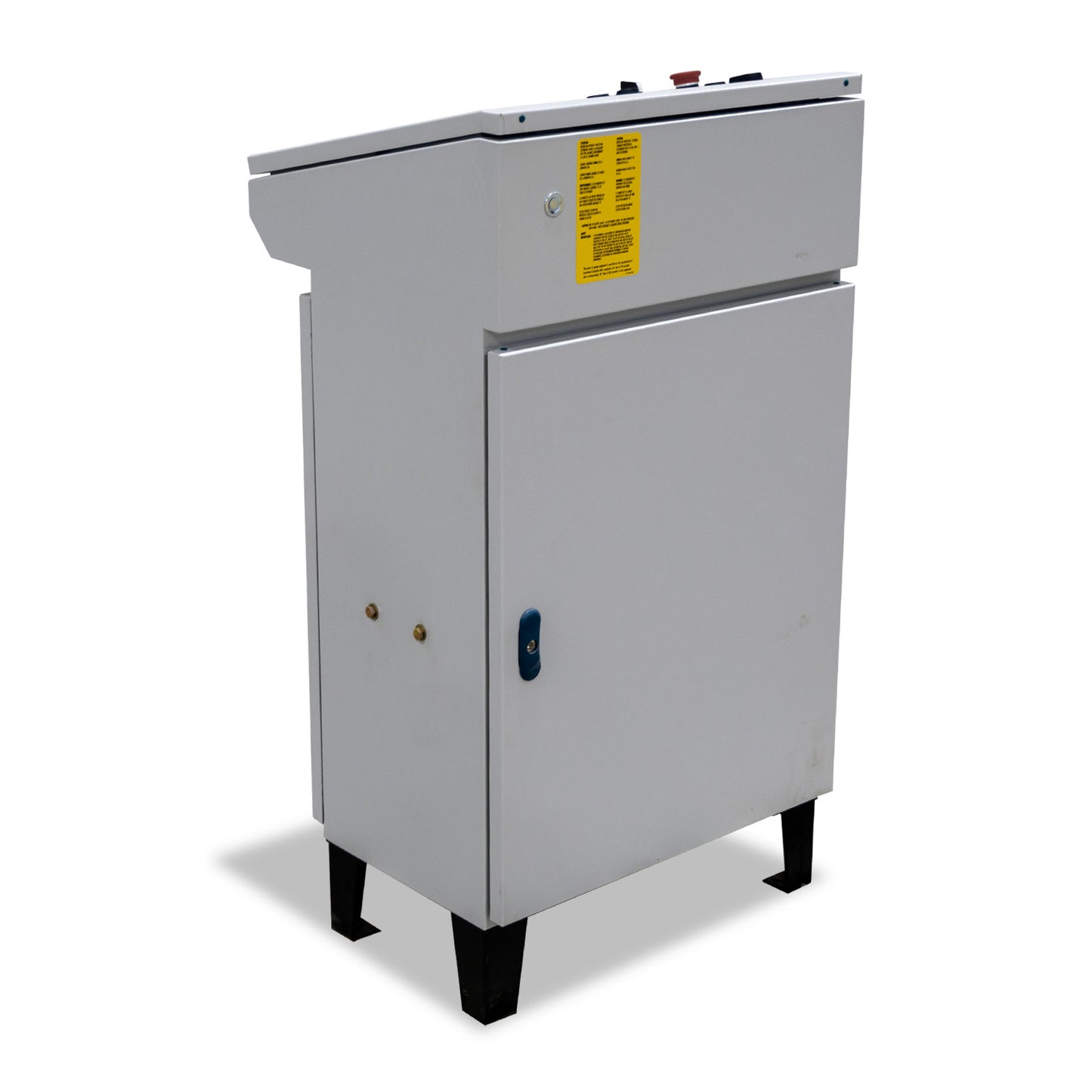

- Enclosed Console Control Power Unit
- Premium Double Baked Powder Coating Finish and Industrial-grade Rust
Proofing
Technical Specifications
Flush-mounted,
14K Lbs. capacity, scissor lift designed for ADAS calibrations
Weight 7450.00
Height 38.00 In
Length 258.00 In
Width 48.00 In
14K ADAS
Scissor Lift
Flush-mounted,
12K Lbs. capacity, scissor lift designed for ADAS calibrations
Weight 7050.00 lbs
Height 38.00 In
Length 240.00 In
Width 48.00 In
12K ADAS
Scissor Lift
Warranty info
One-year Limited Warranty on Lift parts
Five year Warranty on Hydraulic Jack parts
One year warranty on Lift Table parts and hydraulic components
90 days on front turn plates, rear slip plate and bearings, air kit and LED light kits.
Designed for ADAS
The Autel ADAS Bay Max lifts are designed for ADAS calibrations and are equally at home in Alignment shops.
-
Free Shipping
Allow 6 weeks lead time on all lift orders.
-
Installation not included
A member of the Autel installation team will contact you to quote and schedule installation.
