TOPDON Tornado 90000

6 CHARGING MODES, ADJUSTABLE CURRENT AND VOLTAGE

The Tornado90000 offers 6 programmable charging modes to ensure the right current and voltage output at all times. This device also features an electrical current edit, and voltage edit function. The voltage adjustment ranges from 11-15.8V, and 22-31.6V. Corresponding currents are 5-90A and 5-45A.

LARGE POWER BANK

The Tornado90000 can act as a stable power supply for various automotive appliances such as tire inflators, car fridges, and more.

ECU PROGRAMMING VOLTAGE STABILIZER

ECU programming voltage stabilizer can match multiple brands and types of automotive systems.

UNMATCHED COMPATIBILITY

Charge a wide variety of 12V and 24V batteries, such as AGM, WET, GEL, MF，CAL, and EFB batteries.The Tornado90000 is suitable for batteries between 5 and 90 amps.

9-STEP SMART CHARGING

Its "9-step smart charging" provides strong protection to the battery and the automatic charging and disconnection system eliminates any risk of overcharging.

YOUR BATTERY'S BODYGUARD

With the Tornado90000 you are protected against reverse polarities, reverse charges, short circuits, overheating, and over-voltages.

DUAL TEMPERATURE MONITORING FOR SAFETY IN EVERY ELEMENT

The Tornado90000 features a built-in temperature sensor constantly protecting the device being charged. It has a built-in temperature sensor to detect the temperature of the device at all times; External temperature sensing probe to monitor and protect the device being charged.

Input Voltage:100-130V or 200-240V

Adjustable Voltage:11-15.8V 22-31.6V

Charging Mode:12V/24V Mode: SUPPLY/NORM/COLD/BOOST/REPLY/AGM

Applicable Batteries:20-2800Ah

AC Cable Length:1.8m, Input AWG18#

Clamp Length: Positive AWG4#, 2.2m; Negative AWG4#, 2.2m

Protection Rating: IP20 Fan cooled

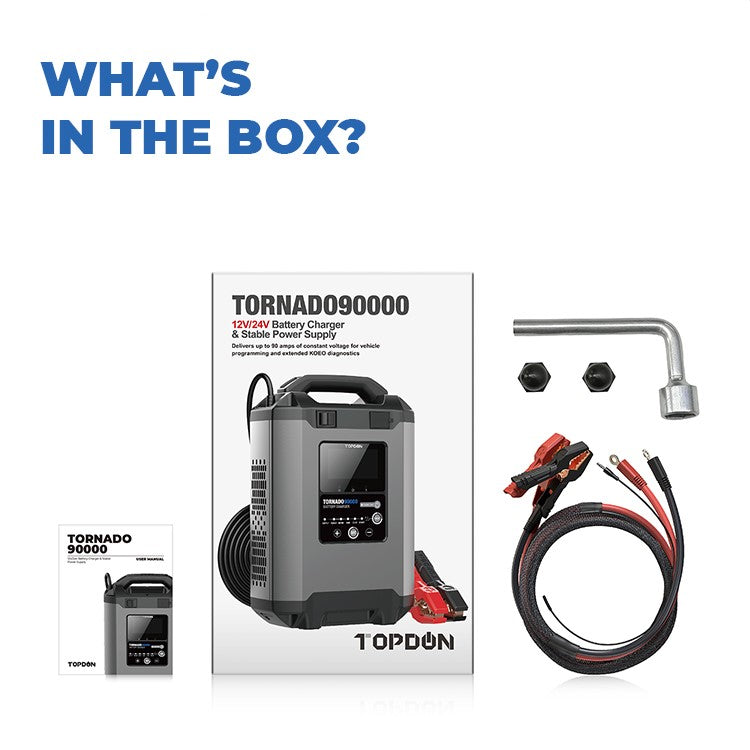

Tornado90000
User Manual
Battery Clamp
Allen Wrench

User Manual

3 Year Warranty
