TOPDON USA

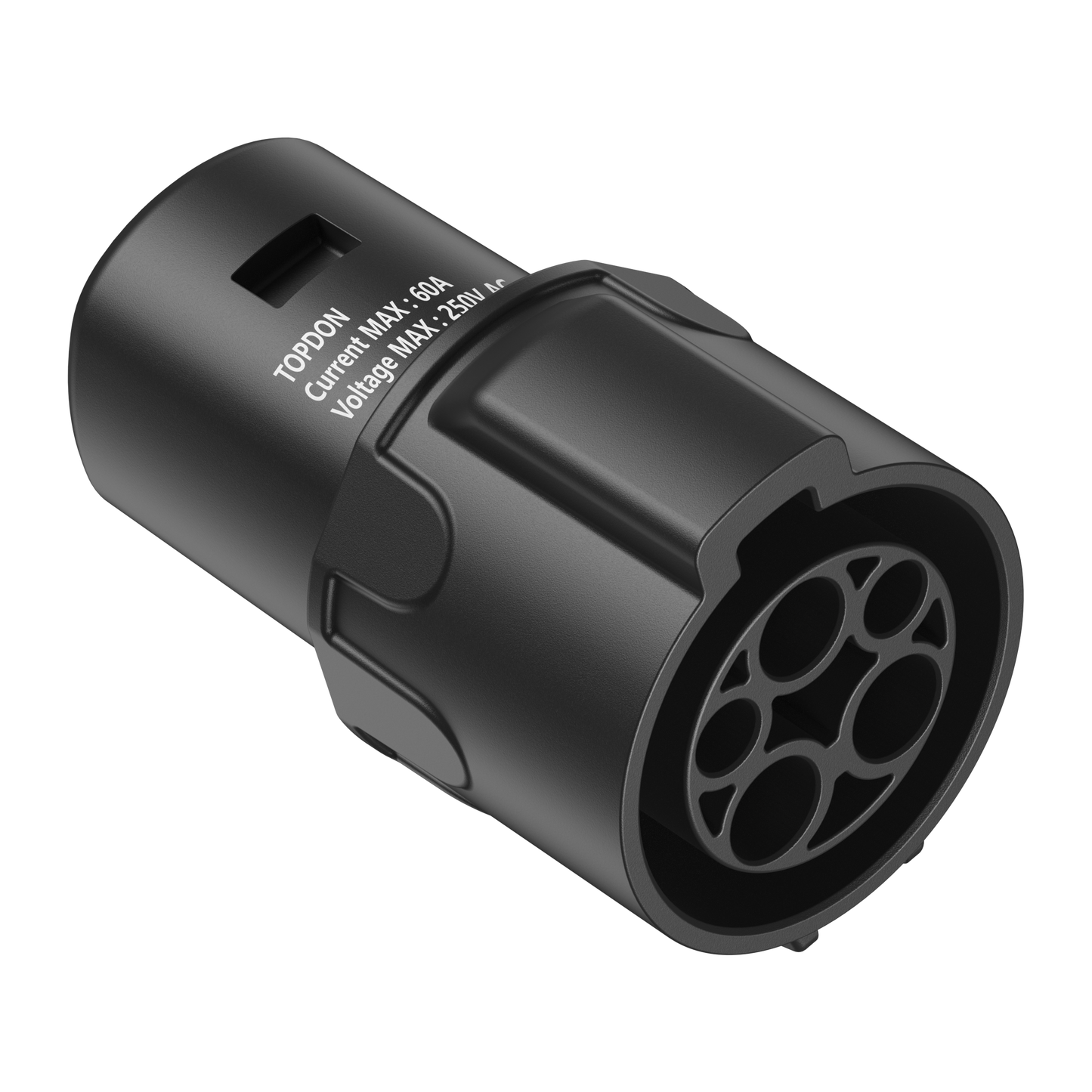

J1772 to Tesla Charging Adapter

J1772 to Tesla Charging Adapter

Regular price $50.00 USD
Regular price $50.00 USD Sale price $50.00 USD
Sale Sold out

TOPDON's J1772 to Tesla Charging Adapter is a must-have accessory for Tesla owners. This adapter lets your Tesla charge with the J1772 cable. Designed to fit all Tesla models 3, Y, S, and X, this adapter offers a simple plug-and-play experience for hassle-free charging. Its durable and portable design has been tested for durability and conductivity, ensuring long-lasting performance. Additionally, its compact size allows for easy transportation. With a rating of up to 60 amps and support for 110V-240V, this adapter provides fast and convenient charging, allowing you to charge your Tesla in just a few hours. Now you can enjoy a wider range of Level 1 and Level 2 EV charging stations with ease.

View full details

All the details

Features

Expanded Compatibility With SAE J1772 (TYPE1) Connector

  • Using a standard J1772 connector, the PulseQ allows for wide compatibility with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles.
  • Coverage includes Tesla (adapter needed), Ford, GM, Volkswagen, Nissan, Audi and more; perfect for users that own more than one electric vehicle.

Level 2 Charger with UL Certification

  • The U.S spec PulseQ is a UL listed EV charger; meeting national safety standards with respect to design, performance, and installation.
  • Equipped with a NEMA 14-50 plug, this Level 2 240V home charger can work more efficiently than the level 1 charger as it will provide faster charging.

Work Easier with Intuitive App

  • Using the PulseQ's compatible smartphone app; schedule charging times, check charging milage and cost, get fully charged notifications and adjust the charging current.
  • With administrator permissions (the first registered user) the PulseQ can be operated by more than one person simultaneously.

Plug-and-Play & App Control

  • The App controlled charging mode allows users to set charging times, adjust charging current, as well as track charging status; all on a smartphone. With Plug-and-Play mode, charging begins as you slot the charger into the vehicle;  stop charging by pressing the button on the side of PulseQ to pull out the charger.
  • The smart design will automatically switch into Plug-and-Play mode and continue to charge your vehicles if the App loses connection with the charger.

Compact Design & Easy Installation

  • Compact design and easy installation make the PulseQ a great option for those who want to install an electric vehicle charging station at home. Easily mount the charger on a wall or pole. The PulseQ can even be mounted outside.
  • If an NEMA14-50R outlet is installed and Wi-Fi connected, the charging station can be easily installed in 15 minutes.

Built to Last

  • The PulseQ is made of flame-retardant materials and is packaged in a dust-proof and water-resistant case that’s built to NEMA TYPE 4 standards; suitable both for indoor and outdoor application, and backed by the TOPDON 3-year warranty. The connector operating life is up to 10000 cycles.
  • Equipped with a 16.4ft rugged charging cable made of PVC and copper, which can accommodate up to 40A. The charger can be saved in the socket when not in use; coil the charging cable and hang it over the socket for storage.  ​

Safety Above Everything

  • The PulseQ is equipped with multiple safety features to ensure safety under any circumstance.
  • Safety features include Under Voltage protection, Over Voltage protection, Overload protection, Over-Temp protection, Short Circuit protection, Ground protection, Earth Leakage protection (CCID 20), and Lightning protection.

Technical Specifications

  • Charging Mode: App-Controlled/Plug-and-Play/RFID mode
  • Indicator Lights: 4 LED Lights: standby, charging, fault, and network
  • AC Power Input/Output Voltage: Level 2 AC-208-240V
  • Adjustable Current: 6-40A
  • Rated Frequency: 50/60 Hz
  • Plug: NEMA 14-50
  • Connector Type: SAE J1772 (Type 1)
  • Box Dimensions: 12.2 x 8.6 x 3.7 inches (310 x 220 x 95 mm)
  • Standard Cable Length: 16.4 ft. (5 m)
  • Optional Cable Length: 24.6 ft. (7.5 m)
  • Weight: 15 lbs. (7 kg)
  • Working Temperature: -22 ~ 131℉ (-30 ~ 55℃)
  • Storage Temperature: -40 ~ 167℉ (-40 ~ 75℃)
  • Enclosure: PC + ASA
  • Cable: PVC + Copper

What's in the box

  • AC EV Charger (14-50P input power cable & 5m or 7.5m charging cable)
  • Charging Dock
  • Wall-mounting Accessories
  • User Manual
  • Quick User Guide
  • Quality Certificate
  • Wall Installation Template
  • M6×63mm Expansion Bolt
  • M5×40mm Expansion Bolt
  • Charging Dock Installation Template
  • IC Card

Warranty info

Three Year Warranty

Charge your EV no matter the manufacturer

It's compatible with most electric vehicles sold in America because of the SAE J1772 (Type 1) plug.
